Engine Compartment Side Inline Connector End View (C106)
Engine Compartment Side Inline Connector End View (C106)

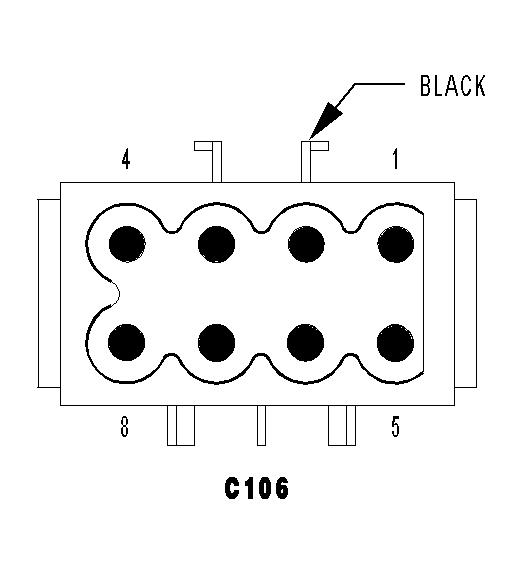

C106 - BLACK (ENGINE COMPARTMENT SIDE)
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
1
20BR/VT
2
12BK (SRT)
3
18BL/DG
4
16BK/YL
5
20BL
6
14VT/WT
7
-
8
-
Courtesy of DAIMLERCHRYSLER CORP.
