Wire Splicing

When splicing a wire, it is important that the correct gage be used as shown in appropriate SYSTEM WIRING DIAGRAMS article.

1. Remove one-half (1/2) inch of insulation from each wire that needs to be spliced.
2. Place a piece of adhesive lined heat shrink tubing on one side of the wire. Make sure the tubing will be long enough to cover and seal the entire repair area.

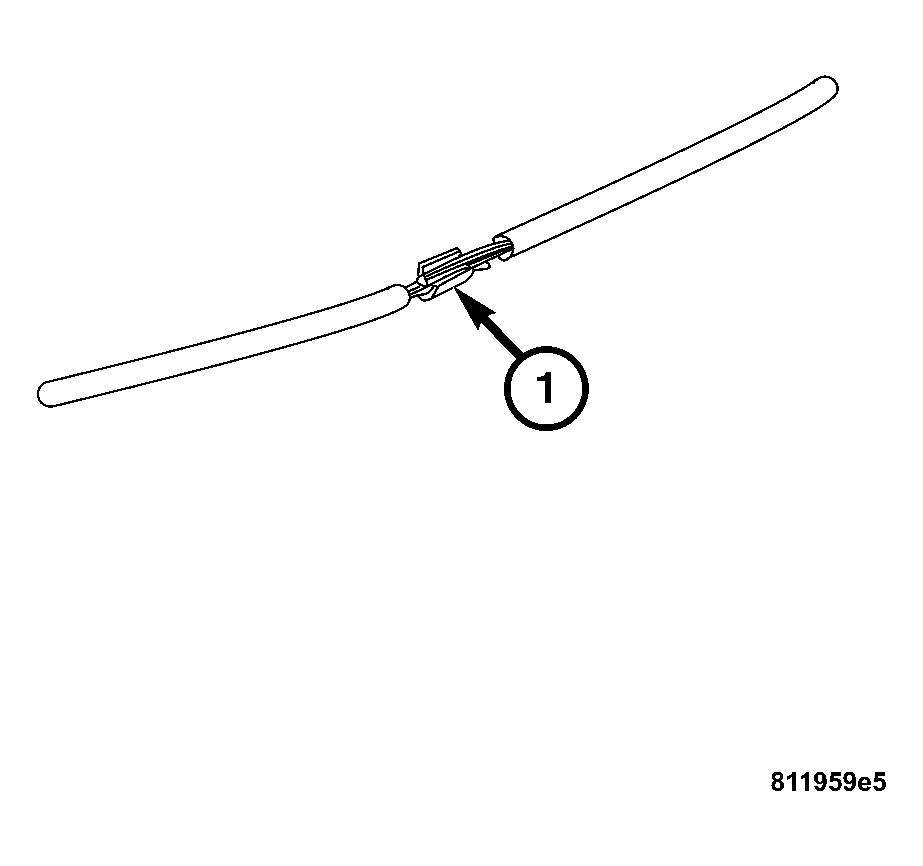

   Fig 1: Splice Band

   Courtesy of DAIMLERCHRYSLER CORP.
3. Place the strands of wire overlapping each other inside of the splice clip(1).

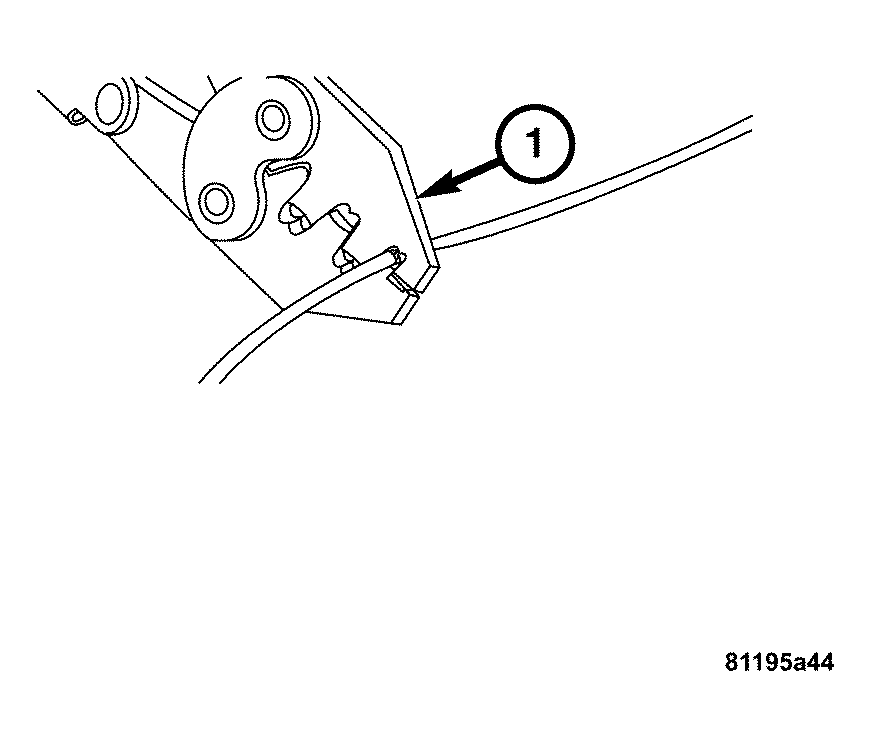

   Fig 2: Crimping Tool

   Courtesy of DAIMLERCHRYSLER CORP.
4. Using crimping tool (1), Mopar p/n 05019912AA, crimp the splice clip and wires together.

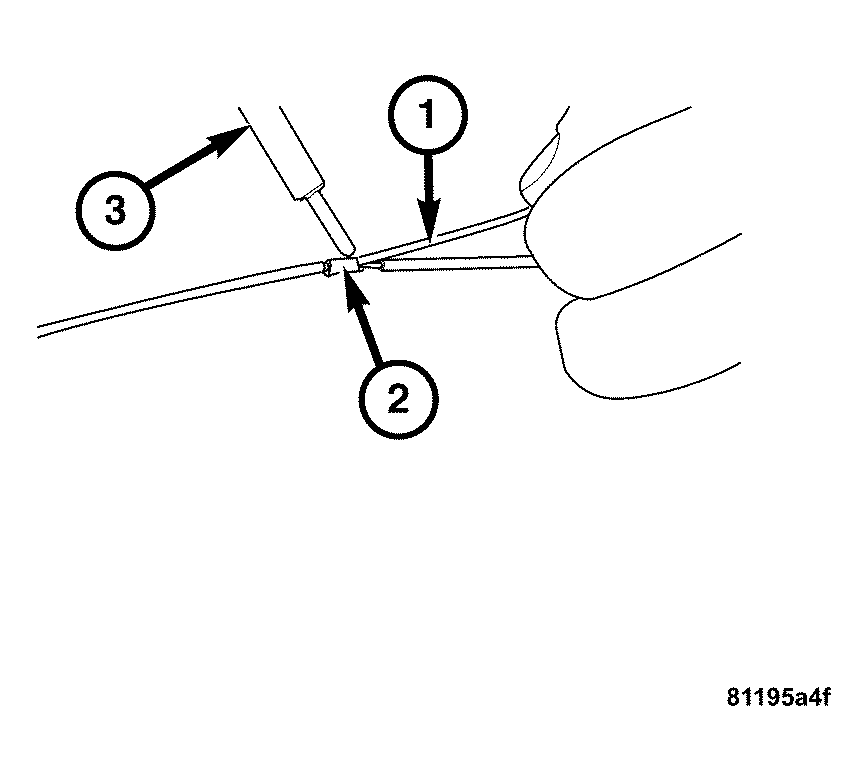

   Fig 3: Solder Splice

   Courtesy of DAIMLERCHRYSLER CORP.
5. Solder the connection (2) together using a soldering iron (3) and rosin core type solder (1) only.
   CAUTION: DO NOT USE ACID CORE SOLDER.

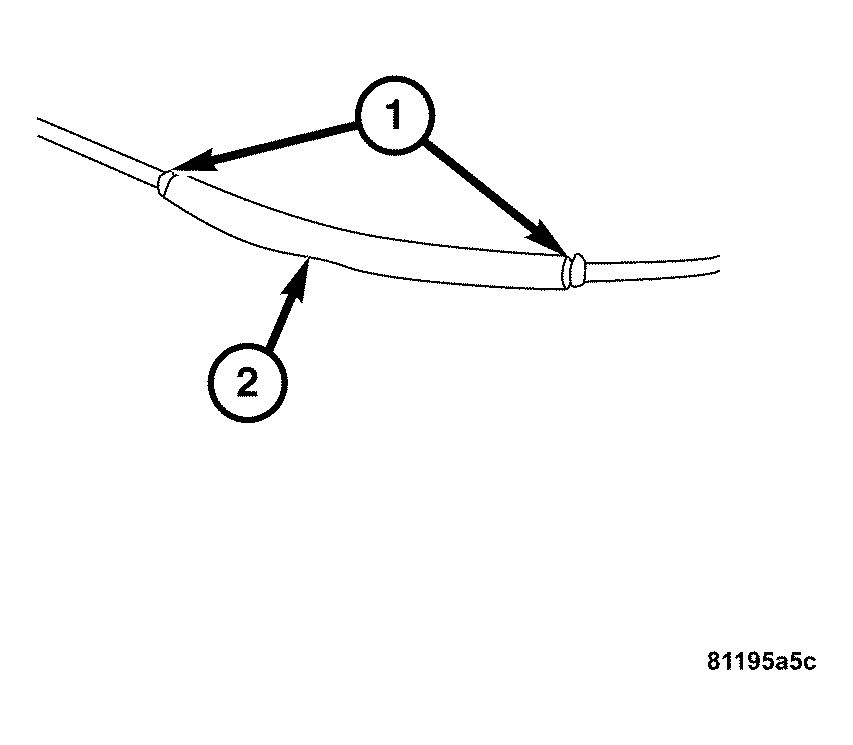

   Fig 4: Heat Shrink Tube

   Courtesy of DAIMLERCHRYSLER CORP.
6. Center the heat shrink tubing(2) over the joint and heat using a heat gun. Heat the joint until the tubing is tightly sealed and sealant(1) comes out of both ends of the tubing.
