Wiring Diagram Information: Diode: Removal

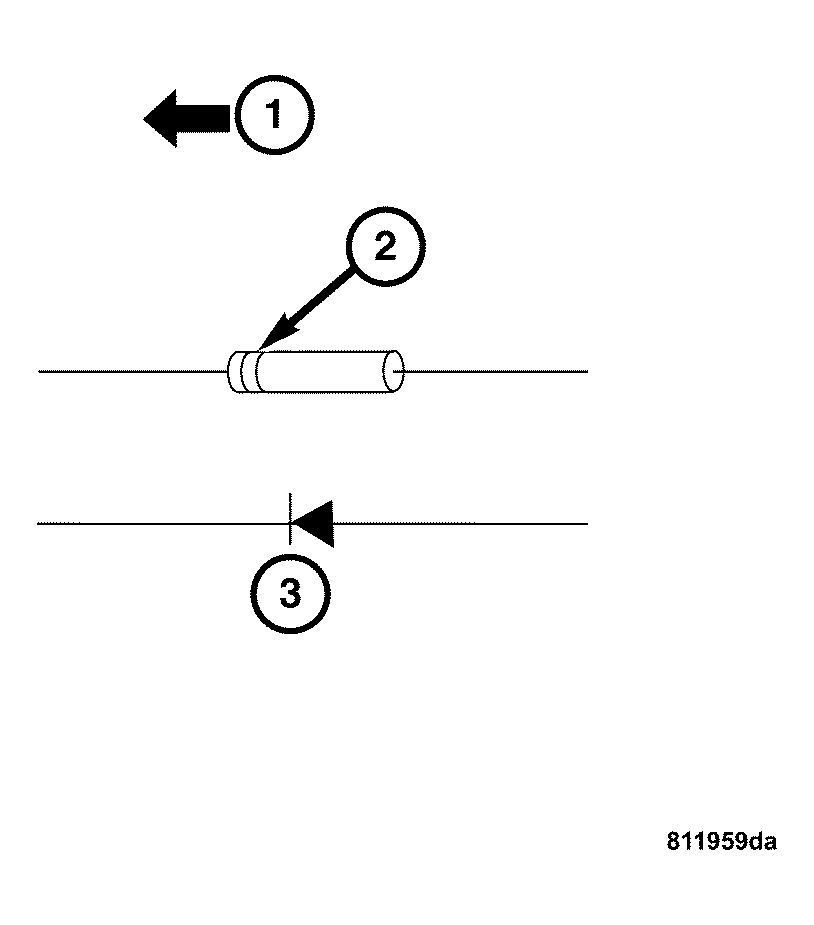

Fig 1: Diode Identification

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the battery.
2. Locate the diode in the harness, and remove the protective covering.
3. Remove the diode from the harness, pay attention to the current flow direction(1).
