DTC 08-20: Driver Side Airbag Resistance Too Low: Notes

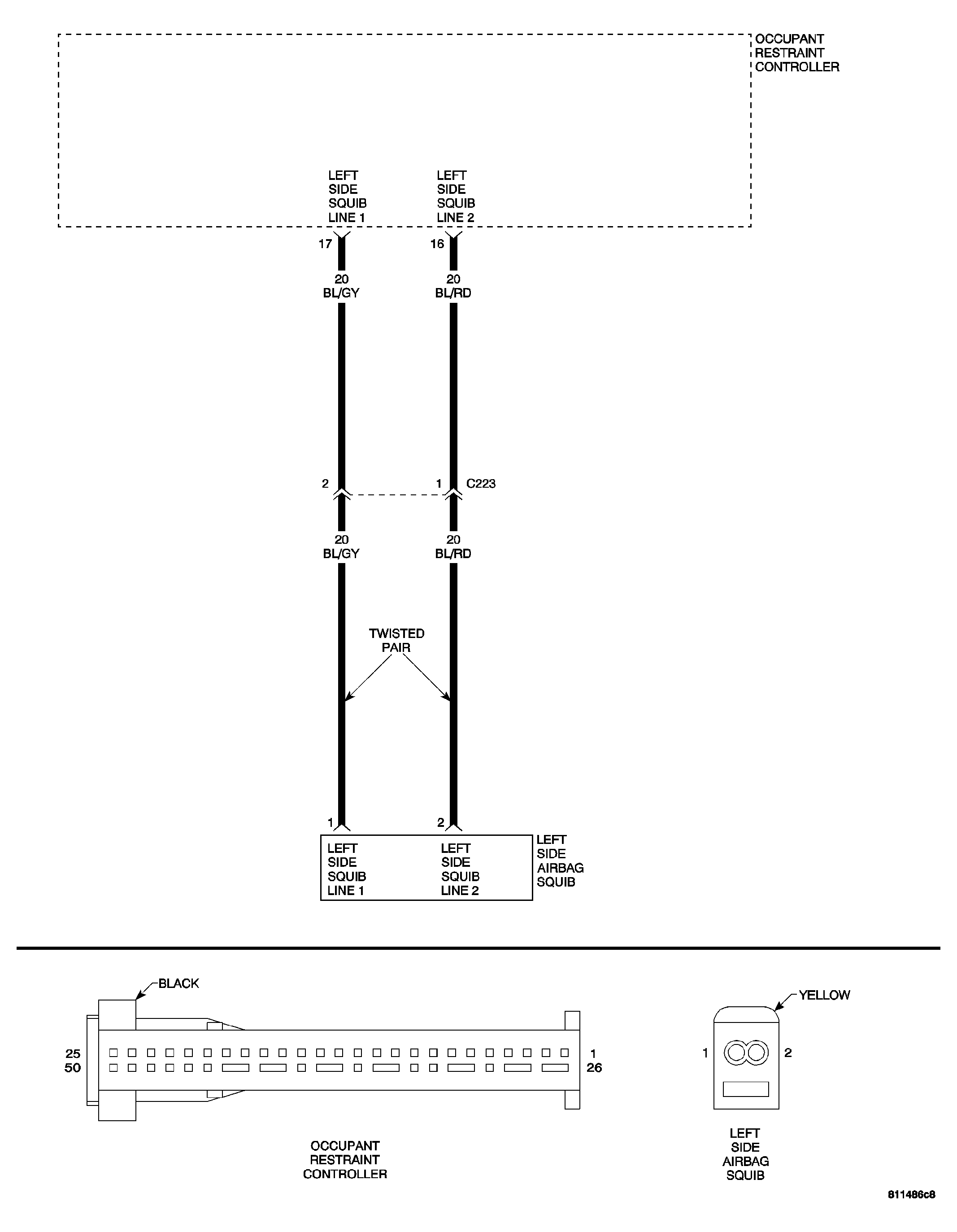

Fig 1: Left Side Airbag Squib Circuit Diagram

GC0035608

Courtesy of DAIMLERCHRYSLER CORP.
