DTC 1282-00: Left Power Window Motor Circuit Failure: Notes

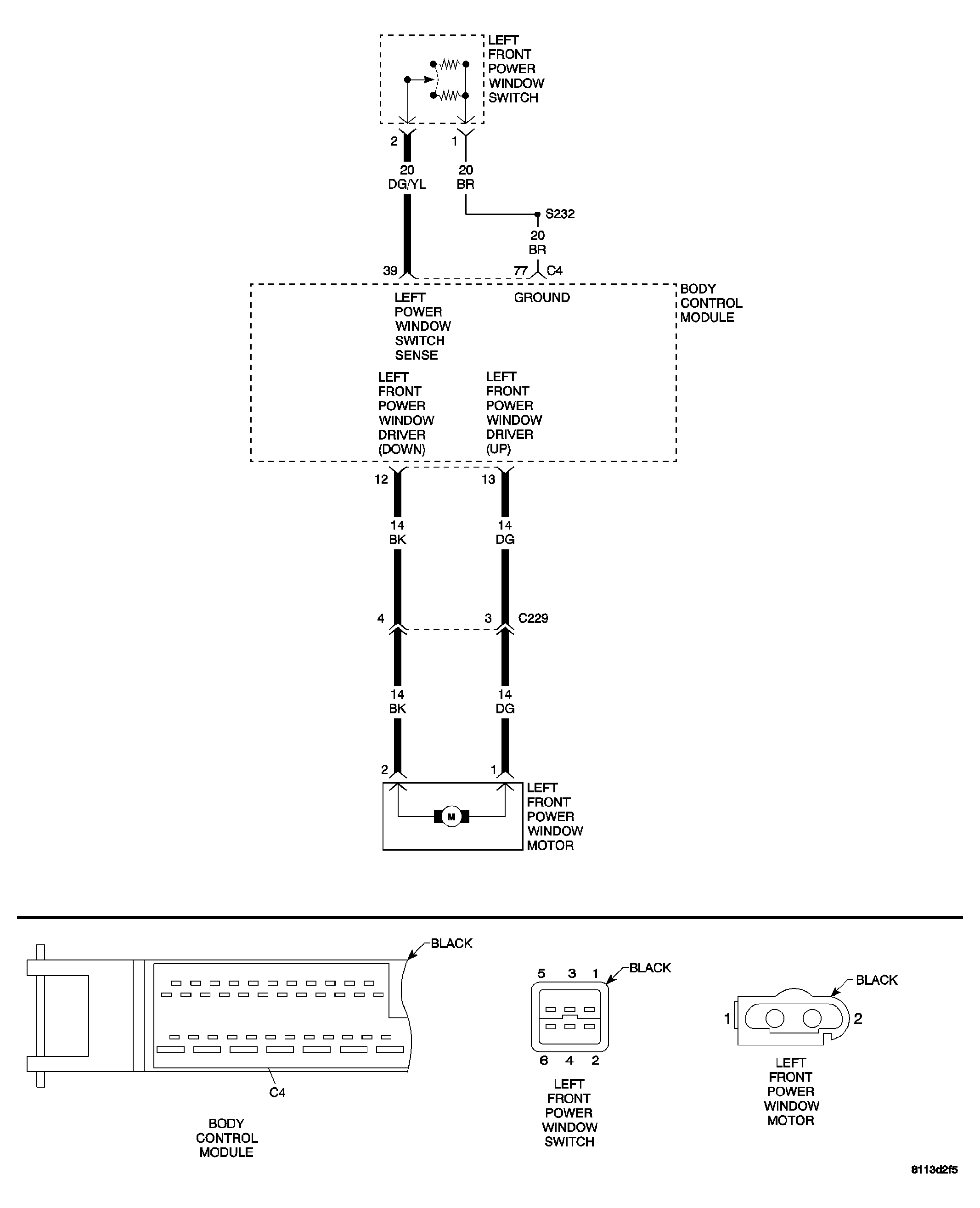

Fig 1: Left Front Power Window Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

POSSIBLE CAUSES
LEFT FRONT POWER WINDOW MOTOR
LEFT FRONT POWER WINDOW DRIVER CIRCUIT
BODY CONTROL MODULE

For a complete Power Windows Circuit Diagram, (Refer to ELECTRICAL/POWER WINDOWS - SCHEMATICS AND DIAGRAMS) .
