*Right Front Power Window Inoperative: Notes

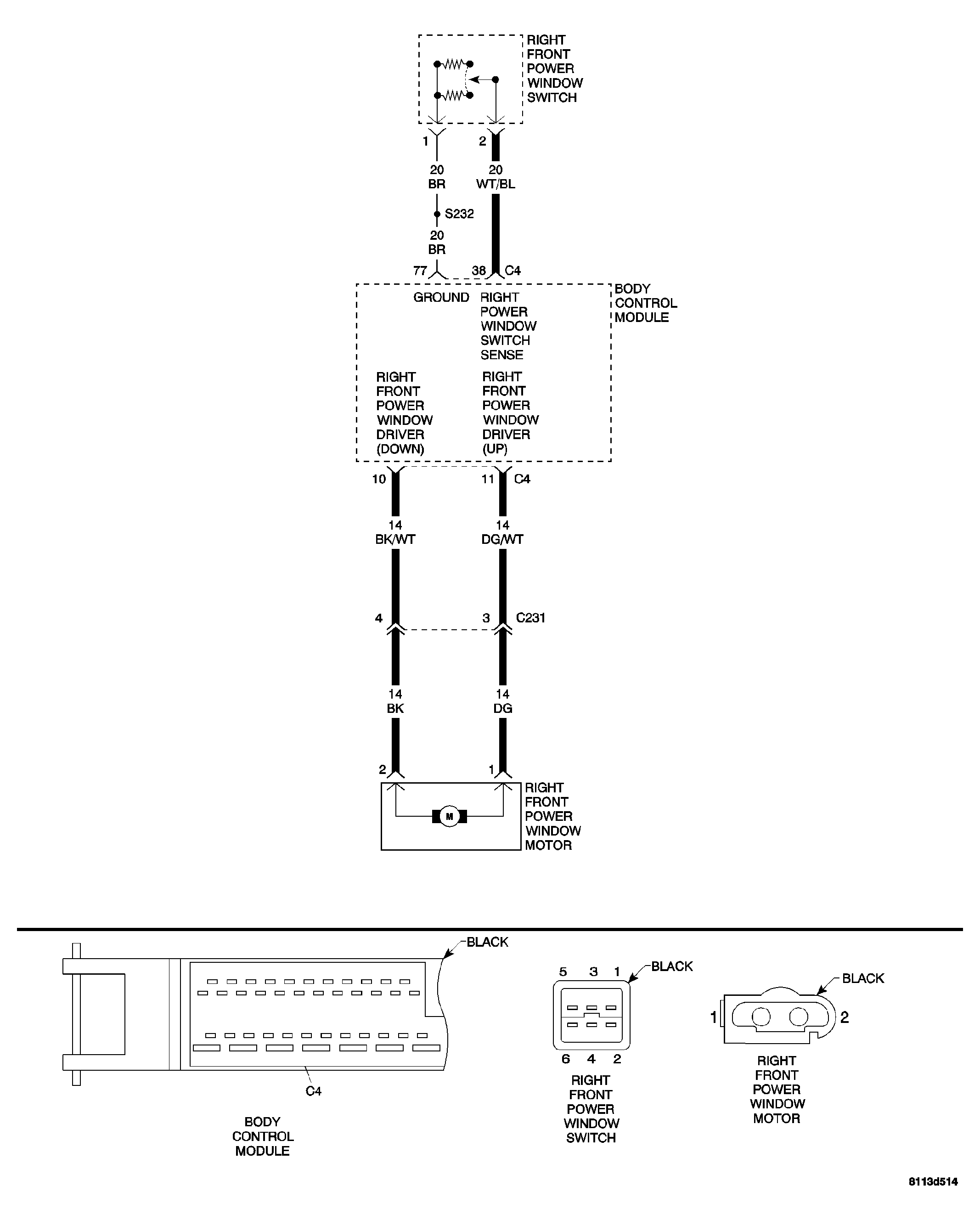

Fig 1: Right Front Power Window Circuit Schematic
GC0035559Courtesy of DAIMLERCHRYSLER CORP.
POSSIBLE CAUSES
RIGHT FRONT POWER WINDOW SWITCH
RIGHT POWER WINDOW SWITCH SENSE CIRCUIT
GROUND CIRCUIT
RIGHT FRONT POWER WINDOW MOTOR
RIGHT FRONT POWER WINDOW DRIVER CIRCUIT
BODY CONTROL MODULE

For a complete Power Windows Circuit Diagram, (Refer to ELECTRICAL/POWER WINDOWS - SCHEMATICS AND DIAGRAMS) .
