Headlamp Vertical Alignment

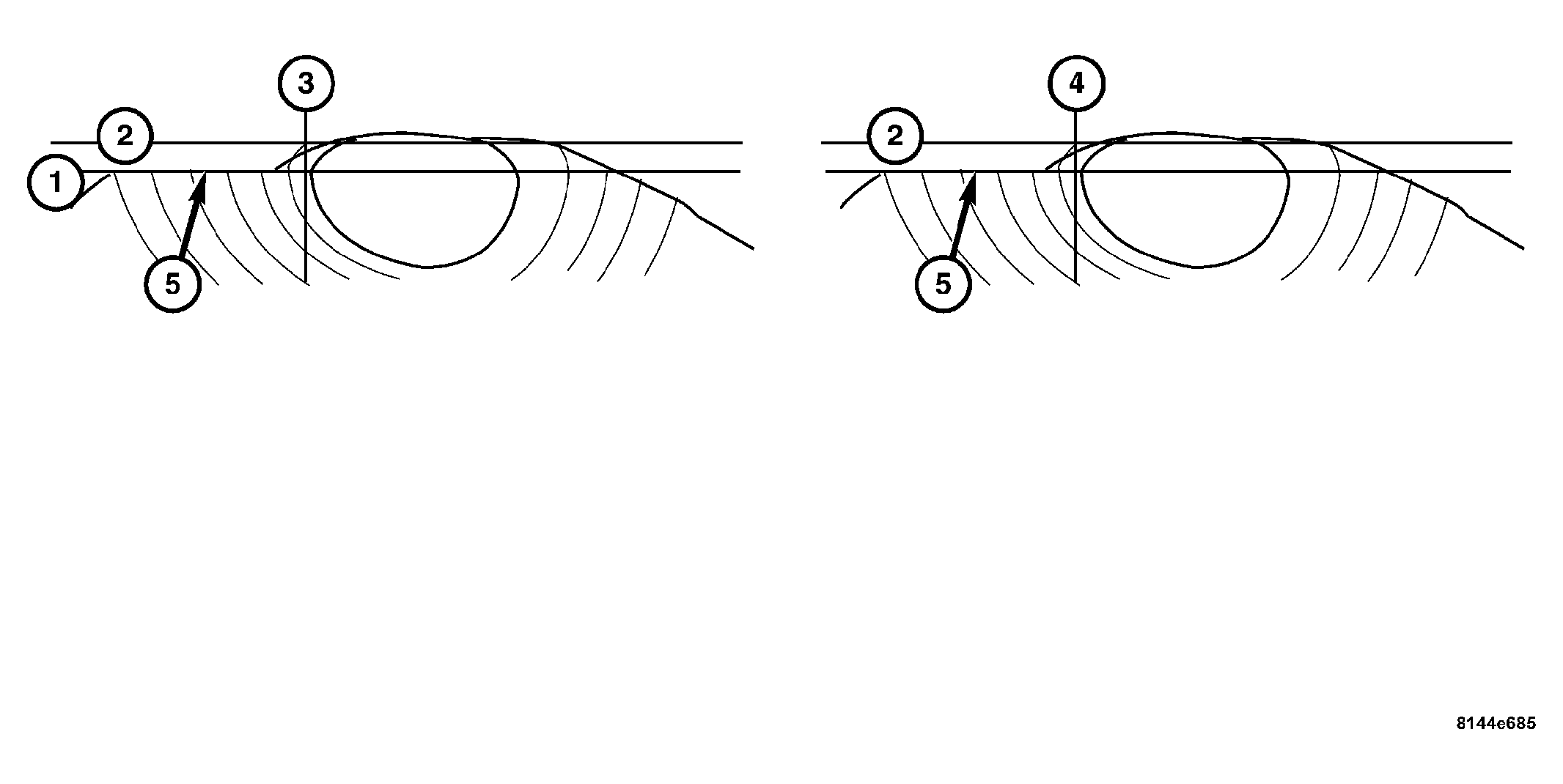

With the horizontal centerline of the headlamp (line 2) transferred on the wall, measure down 53 mm (2.1 in). This new line (line 1) will be the vertical aiming mark. Using the left side of the headlamp vertical centerline (line 3 for left headlamp and line 4 for right headlamp), adjust the headlamp unit so the residual light from the headlamp, not the hot spot, is even with the line (line 1) that was marked previously 53 mm (2.1 in) below the horizontal centerline (line 2). The ideal alignment should be (line 5).
- Turn the headlamps On and select the Low beams.
- Block one headlamp light and adjust the other headlamp.
- Rotate the headlamp vertical adjustment central screw on each lamp to adjust the beam height as required.
