Planetary-Transfer Case: Disassembly

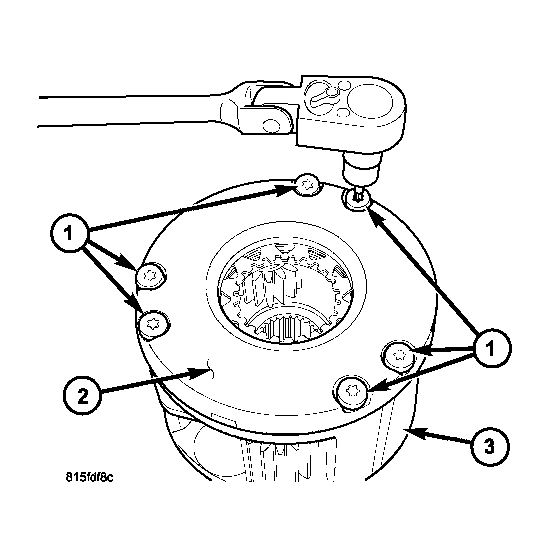

Fig 1: Planetary Cover Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLTS

2 - PLANETARY COVER

3 - PLANETARY ASSEMBLY

1. Remove the bolts (1) holding the planetary cover (2) to the planetary assembly (3). See Fig 1.

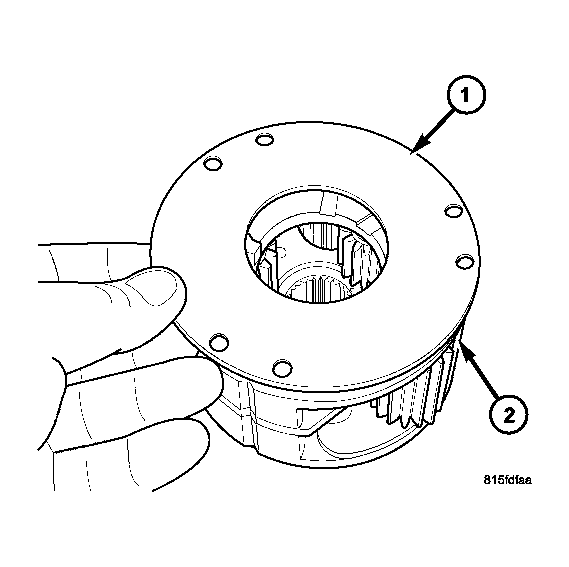

   Fig 2: Planetary Cover

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PLANETARY COVER

   2 - PLANETARY ASSEMBLY

2. Remove the planetary cover (1) from the planetary assembly (2). See Fig 2.

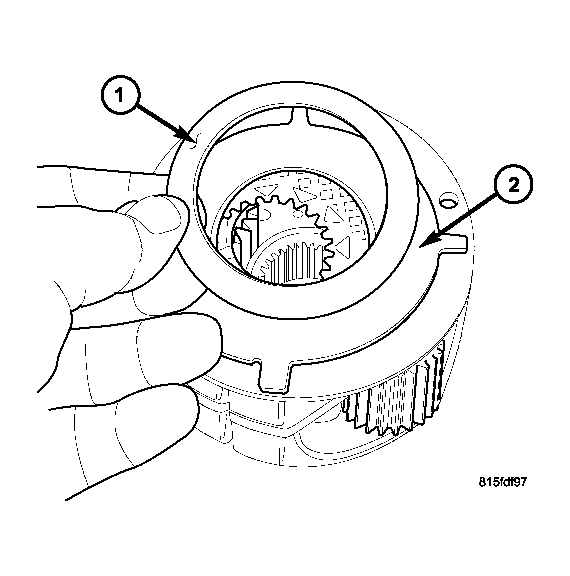

   Fig 3: Planetary Belleville Spring

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - BELLEVILLE SPRING

   2 - FRICTION DISC APPLY PLATE

3. Remove the Belleville spring (1) from the friction disc apply plate (2). See Fig 3.

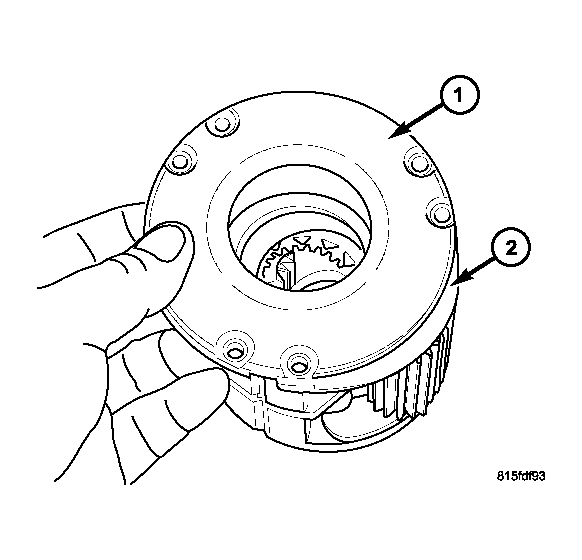

   Fig 4: Friction Disc Apply Plate

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRICTION DISC APPLY PLATE

   2 - FRICTION DISC

4. Remove the friction disc apply plate (1) from the friction disc (2). See Fig 4.

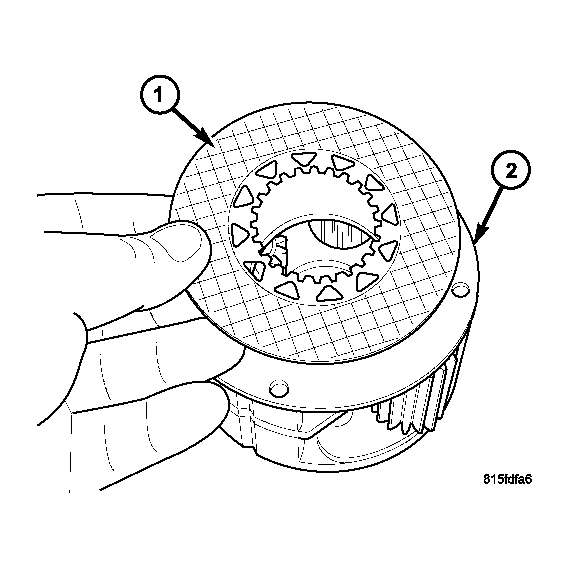

   Fig 5: Friction Disc

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRICTION DISC

   2 - FRICTION DISC WASHER

5. Remove the friction disc (1) from the friction disc washer (2). See Fig 5.

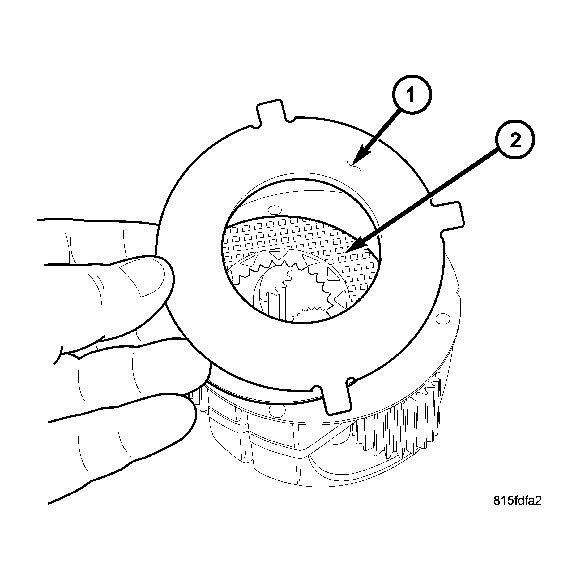

   Fig 6: Friction Disc Washer

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - FRICTION DISC WASHER

   2 - PLANETARY ASSEMBLY

6. Remove the friction disc washer (1) from the planetary assembly (2). See Fig 6.
