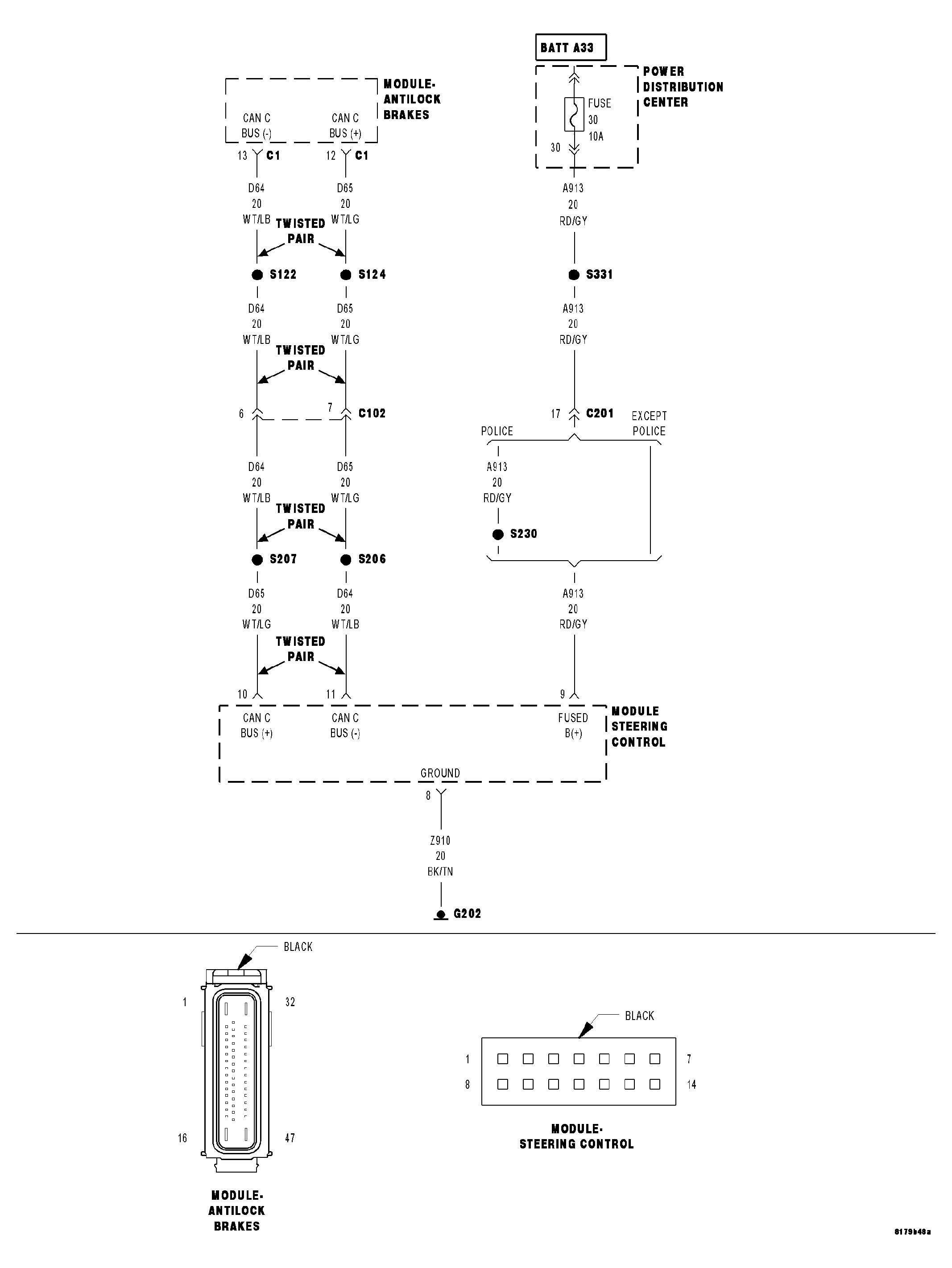

Home >> Chrysler >> 2006 >> 300 SRT-8 >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> Abs Electrical Diagnostics >> DTC Troubleshooting >> C123F-Steering Angle Sensor Comparative Performance >> Circuit Schematic
