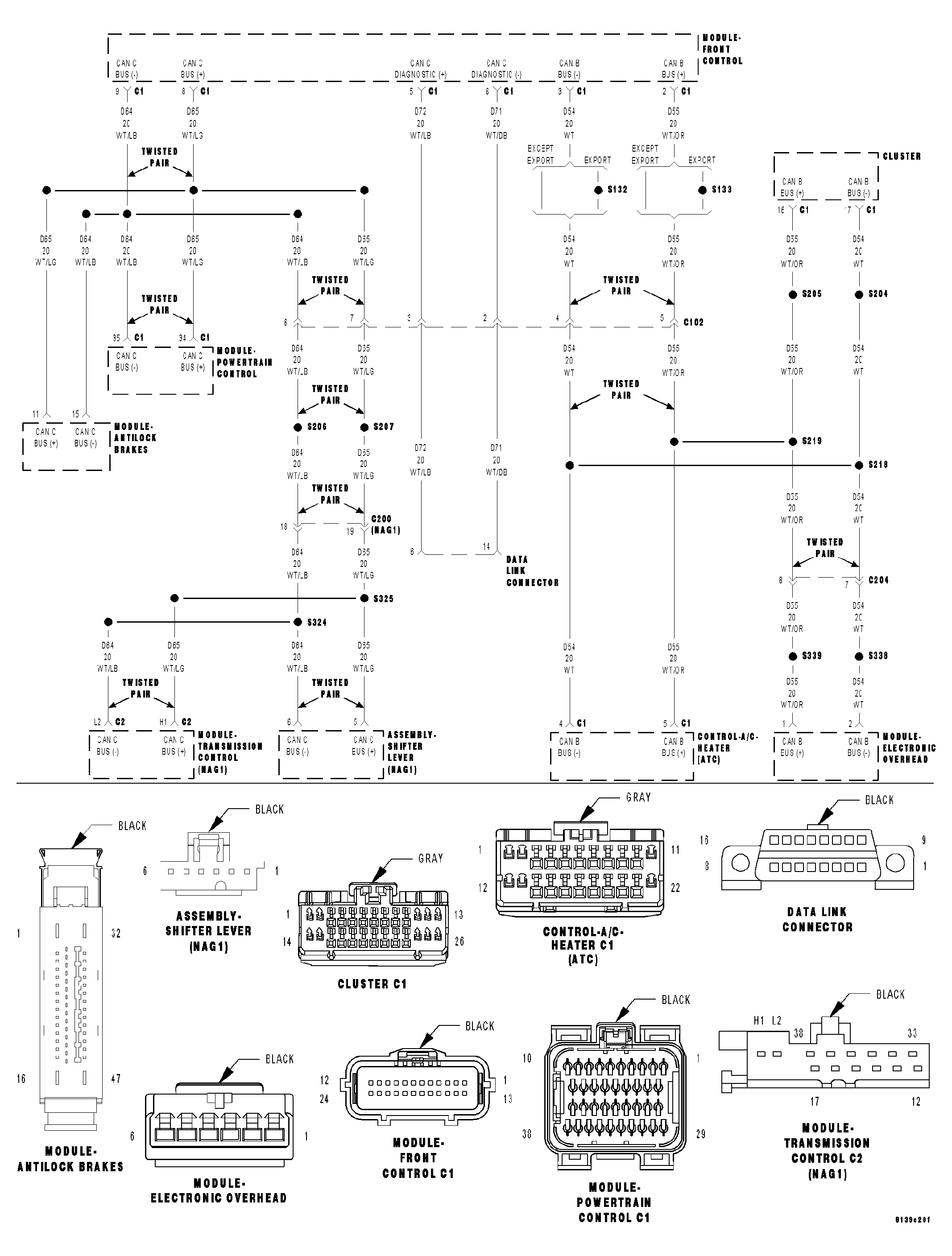

Home >> Chrysler >> 2006 >> 300 C, RWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Nag1 Automatic Transmission - Electrical Diagnostics >> Electrical Diagnostics >> DTC Troubleshooting >> U0141-Lost Communication With Front Control Module >> Circuit Schematic
