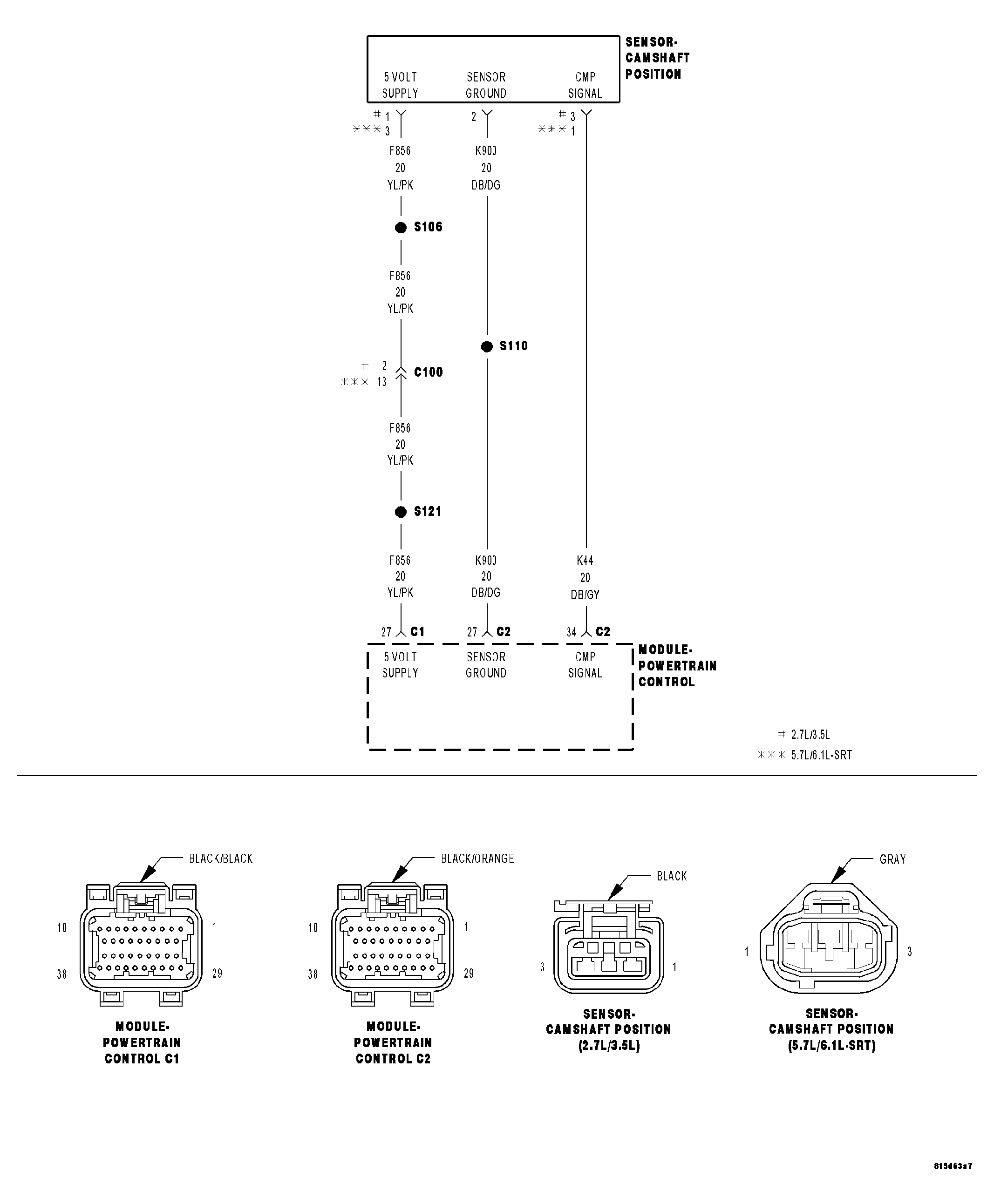

Home >> Chrysler >> 2006 >> 300 C, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - DTCS P0330 To P0480 >> Diagnosis And Testing >> P0340-Camshaft Position Sensor Circuit >> Circuit Schematic
