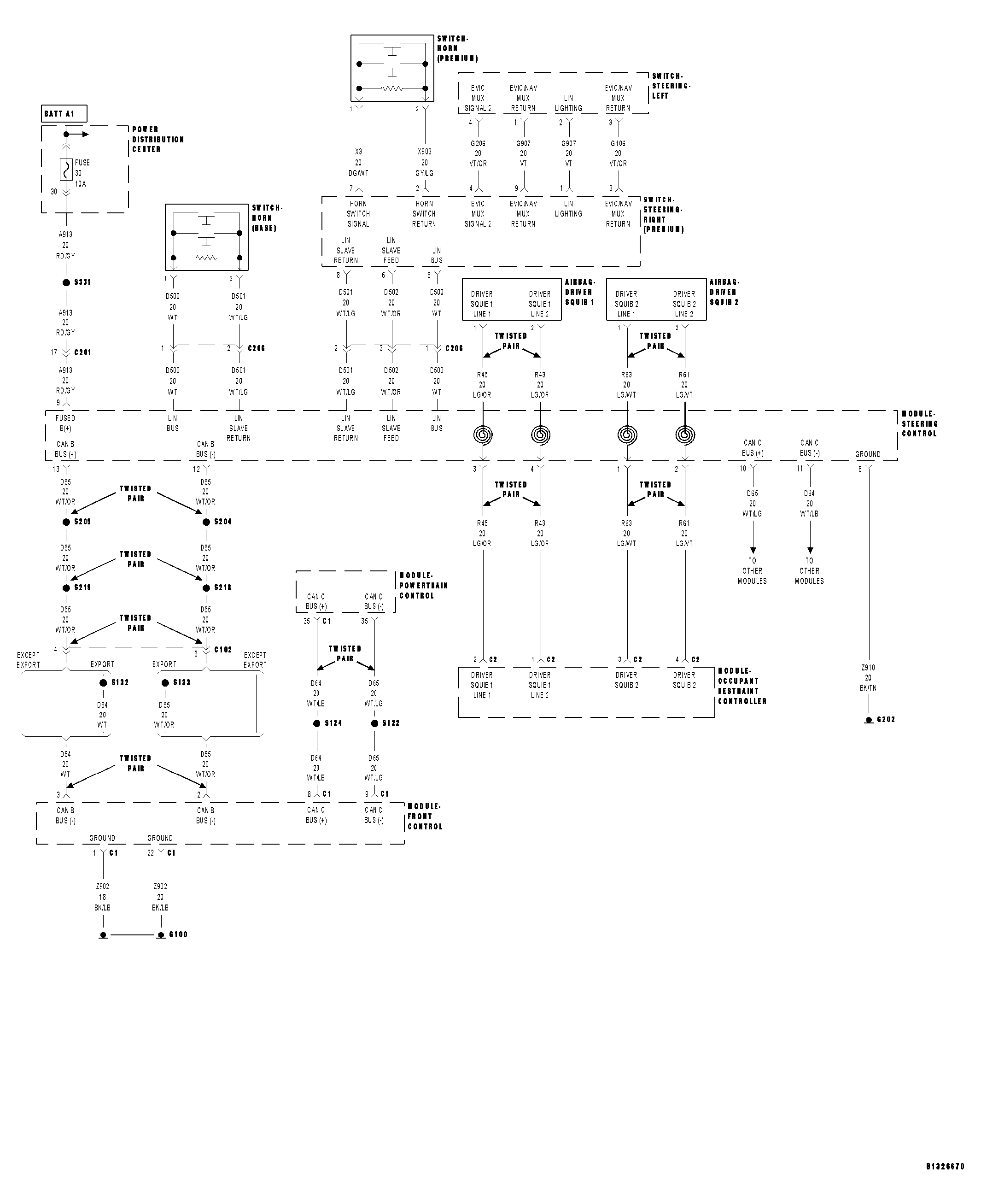

Home >> Chrysler >> 2006 >> 300 Base, 42RLE >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Steering System - Electrical Diagnostics >> Column Electrical Diagnosis >> DTC Troubleshooting >> U0002-Can C Bus Off Performance >> Circuit Schematic
