Section 13 (2.4L DOHC Engine): Arms-Rocker: Inspection

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

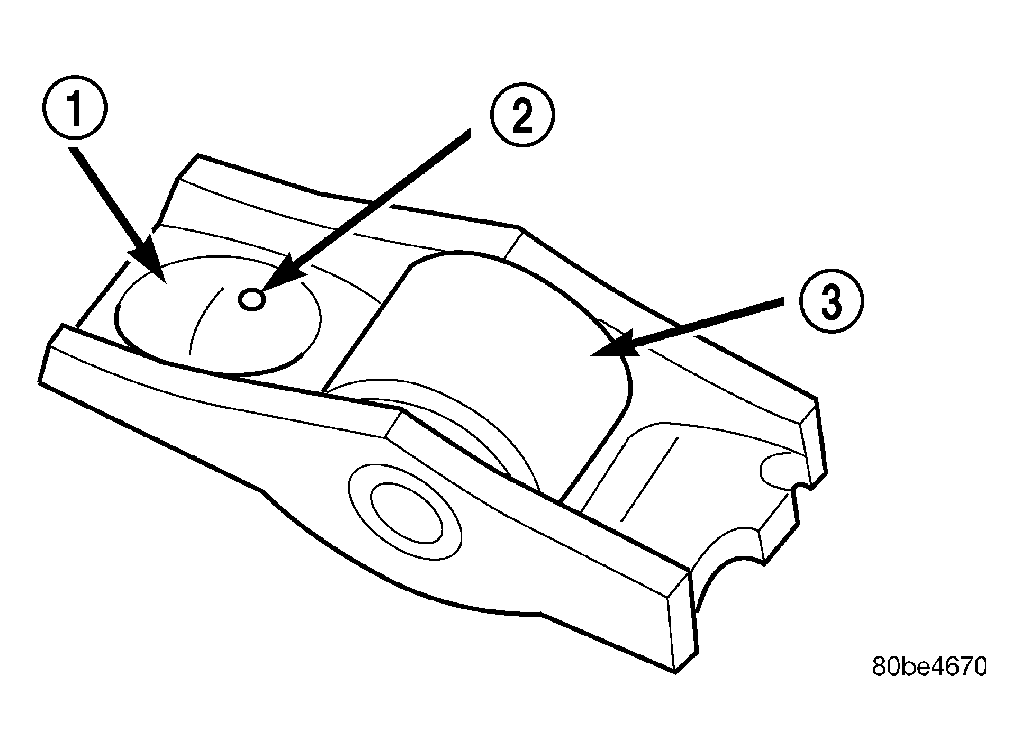

Fig 1: Rocker Arm Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - LASH ADJUSTER POCKET

2 - OIL SQUIRT HOLE

3 - ROLLER

Inspect the rocker arm lash adjuster pocket (1) and roller (3) for wear or damage. Make sure the oil squirt hole (2) is not plugged. See Fig 1. Replace as necessary.
