Exhaust System: Muffler: Description

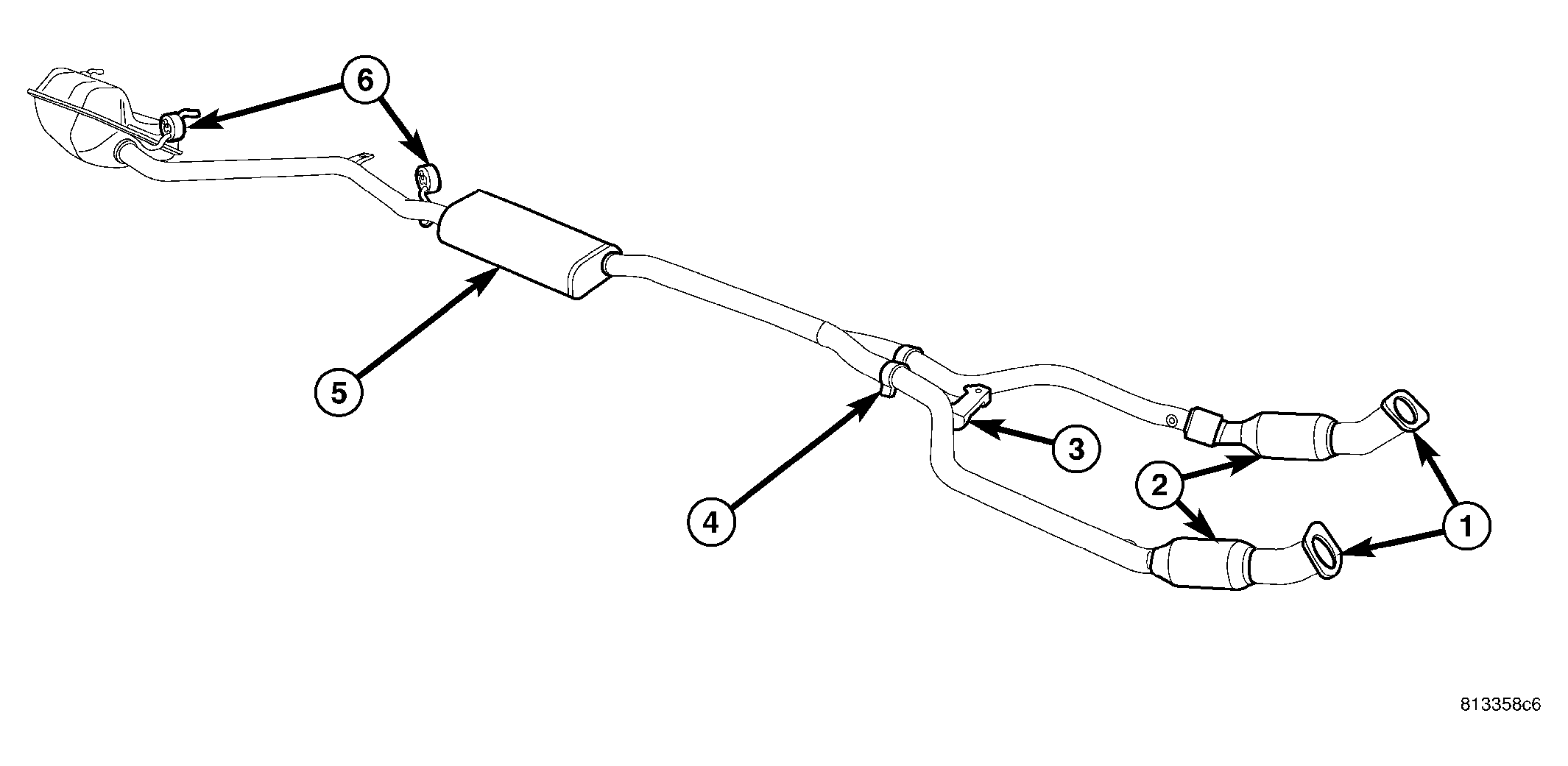

| 1 - BALL FLANGE |
| 2 - CATALYTIC CONVERTER ASSEMBLY |
| 3 - CROSS BRACE |
| 4 - BAND CLAMPS |
| 5 - RH REAR MUFFLER AND RESONATOR |
| 6 - ISOLATORS |
The 2.7L/3.5L exhaust pipe assembly consists of:
- Muffler and resonator assembly module (5)
- Isolators (6)
The muffler and resonator assembly is serviced as an assembly.

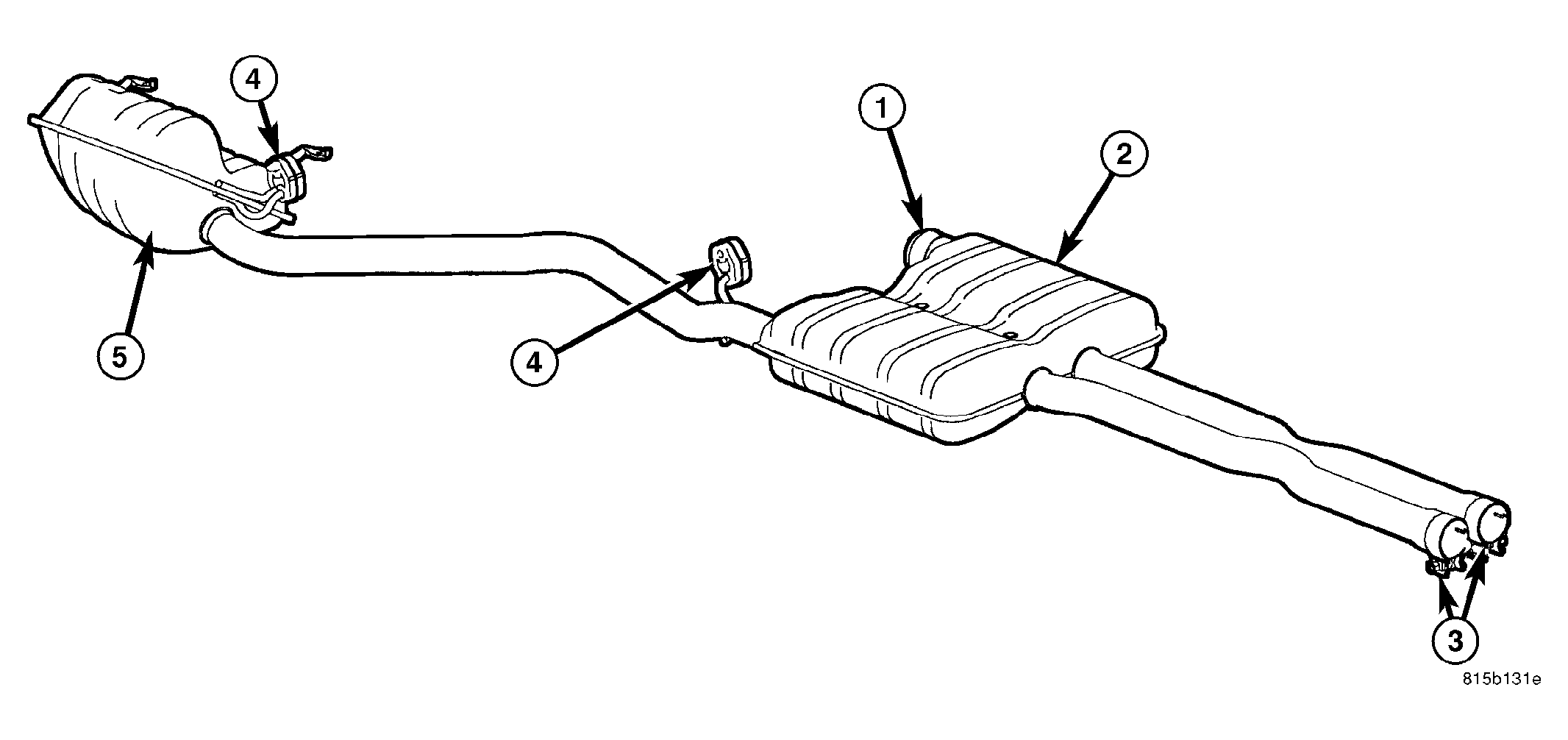

| 1 - BALL FLANGE |
| 2 - FRONT EXHAUST PIPE MUFFLER AND RESONATOR ASSEMBLY |
| 3 - BAND CLAMPS |
| 4 - ISOLATOR |
| 5 - RH REAR RESONATOR AND TAILPIPE ASSEMBLY |
The 5.7L RH muffler and tailpipe assembly consists of:
- Front exhaust pipe and muffler (2) and resonator (5)
- Ball flange (1)
- Isolators (4)
- Band clamps (3)
The muffler and resonator assembly is serviced as an assembly.

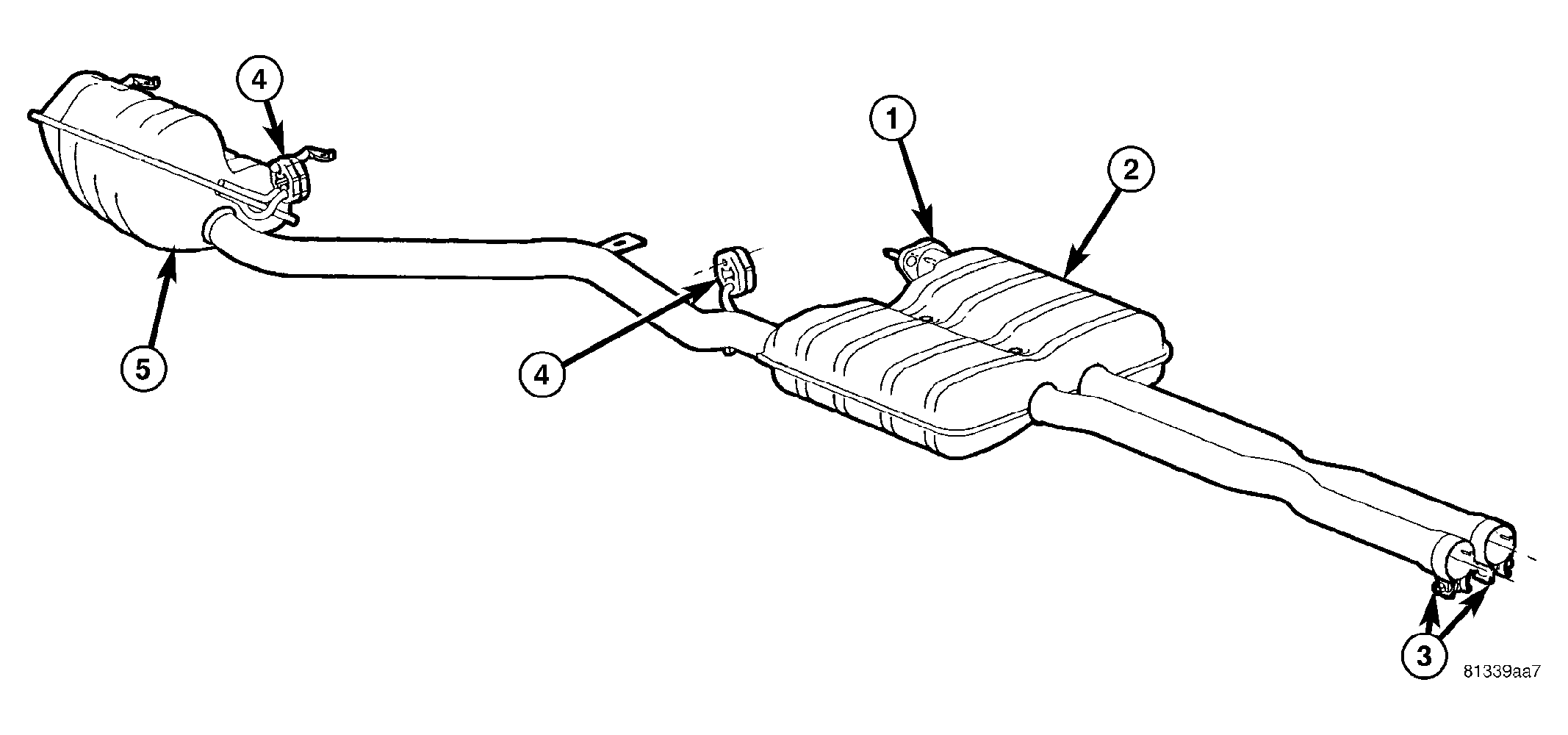

| 1 - BALL FLARE BAND CLAMP |
| 2 - FRONT EXHAUST PIPE MUFFLER AND RESONATOR ASSEMBLY |
| 3 - BAND CLAMPS |
| 4 - ISOLATOR |
| 5 - RH REAR RESONATOR AND TAILPIPE ASSEMBLY |
The 6.1L RH muffler and tailpipe assembly consists of:
- Front exhaust pipe and muffler (2) and resonator (5)
- Band clamp(1)
- Isolators (4)
- Band clamps (3)
The muffler and resonator assembly is serviced as an assembly.
