Right Backup Lamp (Hatchback) Connector End View
Right Backup Lamp (Hatchback) Connector End View

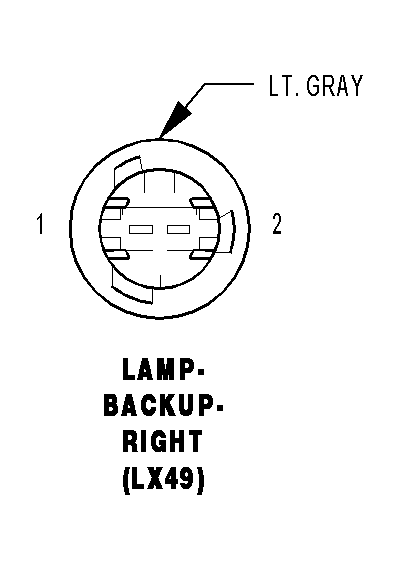

LAMP-BACKUP-RIGHT (LX49) - LT. GRAY 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z914 20BK
GROUND
2
L1 20VT/RD
BACKUP LAMP FEED
Courtesy of DAIMLERCHRYSLER CORP.
