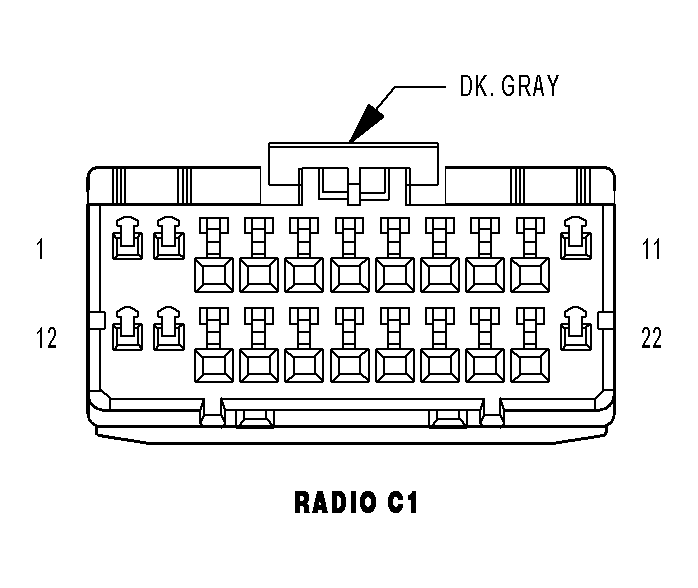

Radio Connector End View (C1)
RADIO C1 - DK. GRAY 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A300 16GY/LG | FUSED B(+) (I.O.D.) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 22DG/OR (HANDS FREE) | LEFT AUDIO OUTPUT |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT | CAN B BUS (-) |
| 7 | X202 18DG/VT (LOWLINE/MIDLINE I) | RIGHT FRONT DOOR SPEAKER (+) |
| 8 | X292 18DG/YL (LOWLINE/MIDLINE I) | RIGHT FRONT DOOR SPEAKER (-) |
| 9 | X291 18GY/YL (LOWLINE/MIDLINE I) | LEFT FRONT DOOR SPEAKER (-) |
| 10 | X201 18GY/VT (LOWLINE/MIDLINE I) | LEFT FRONT DOOR SPEAKER (+) |
| 11 | Z909 18BK/LG | GROUND |
| 12 | A300 16GY/LG | FUSED B(+) (I.O.D.) |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 22DG/YL (HANDS FREE) | RIGHT AUDIO OUTPUT |
| 17 | X795 20DG (HANDS FREE) | COMMON AUDIO OUTPUT |
| 18 | X303 18DG/TN (LOWLINE/MIDLINE I) | LEFT REAR SPEAKER (+) |
| 18 | X51 18DG/DB (MIDLINE II/HIGHLINE) | RADIO LEFT AUDIO (+) |
| 19 | X393 18DG/GY (LOWLINE/MIDLINE I) | LEFT REAR SPEAKER (-) |
| 19 | X57 18DG/OR (MIDLINE II/HIGHLINE) | RADIO LEFT AUDIO (-) |
| 20 | X394 18YL/GY (LOWLINE/MIDLINE I) | RIGHT REAR SPEAKER (-) |
| 20 | X58 18GY/OR (MIDLINE II/HIGHLINE) | RADIO RIGHT AUDIO (-) |
| 21 | X304 18DG/BR (LOWLINE/MIDLINE I) | RIGHT REAR SPEAKER (+) |
| 21 | X52 18GY/DB (MIDLINE II/HIGHLINE) | RADIO RIGHT AUDIO (+) |
| 22 | Z909 18BK/LG | GROUND |
