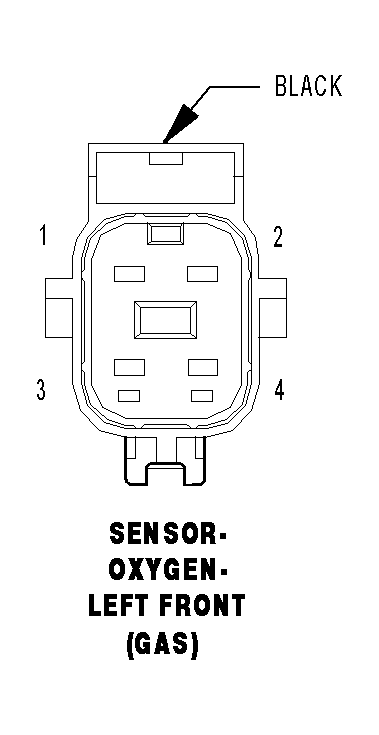

Left Front Oxygen Sensor (Gas) Connector End View
SENSOR-OXYGEN-LEFT FRONT (GAS) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K99 20BR/LG |
O2 1/1 HEATER CONTROL |
| 2 |
Z907 18BK |
GROUND |
| 3 |
K902 20BR/DG |
O2 RETURN (UP) |
| 4 |
K41 20DB/LB |
O2 1/1 SIGNAL |
