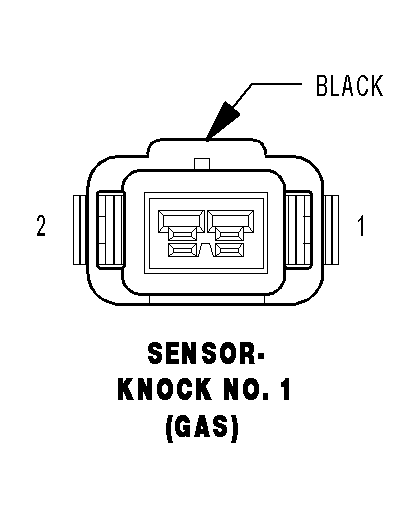

Knock Sensor 1 (Gas) Connector End View

SENSOR-KNOCK NO. 1 (GAS) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K942 20BR/LG	KNOCK SENSOR NO. 1 RETURN
2	K42 20DB/YL	KNOCK SENSOR NO. 1 SIGNAL
