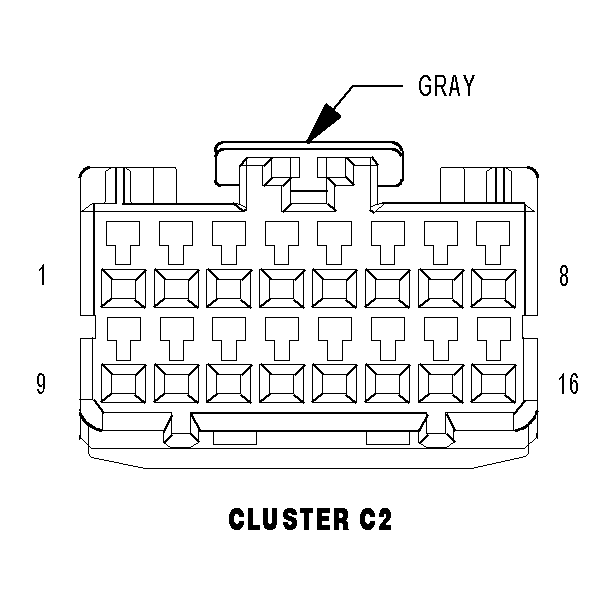

Instrument Cluster Connector End View (C2)
CLUSTER C2 - GRAY 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | N5 20DB/WT | FUEL LEVEL SENSOR NO. 2 SIGNAL |
| 2 | N4 20DB/WT | FUEL LEVEL SENSOR NO. 1 SIGNAL |
| 3 | R57 20LG/GY | DRIVER SEAT BELT SWITCH SENSE |
| 4 | W113 20BR/YL | REAR WIPER SWITCH MUX |
| 5 | L900 20WT/YL | HEADLAMP SWITCH MUX RETURN |
| 6 | - | - |
| 7 | P37 20LG/TN | PASSENGER DOOR LOCK SWITCH RETURN |
| 8 | G900 20VT/OR | IGNITION SWITCH SENSE RETURN |
| 9 | C105 18LB/LG (MTC) | HVAC MUX CONTROL |
| 10 | - | - |
| 11 | - | - |
| 12 | G20 20VT/BR | IGNITION SWITCH SENSE |
| 13 | G167 20VT/LB | DRIVER DOOR LOCK SWITCH RETURN |
| 14 | - | - |
| 15 | G926 20VT/WT | REAR WIPER SWITCH MUX RETURN |
| 16 | Z210 20BK | GROUND |
