Glow Plug 5 (Diesel) Connector End View
Glow Plug 5 (Diesel) Connector End View

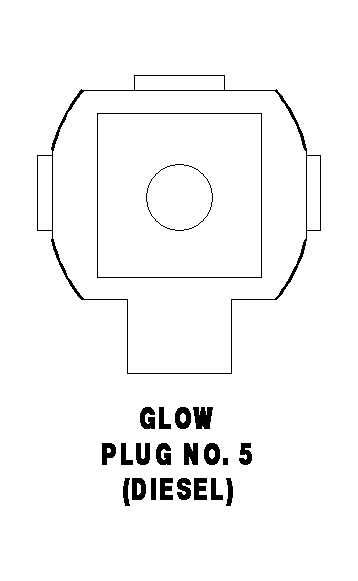

GLOW PLUG NO. 5 (DIESEL) - 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A211 16BK/DG
GLOW PLUG NO. 5 CONTROL
Courtesy of DAIMLERCHRYSLER CORP.
