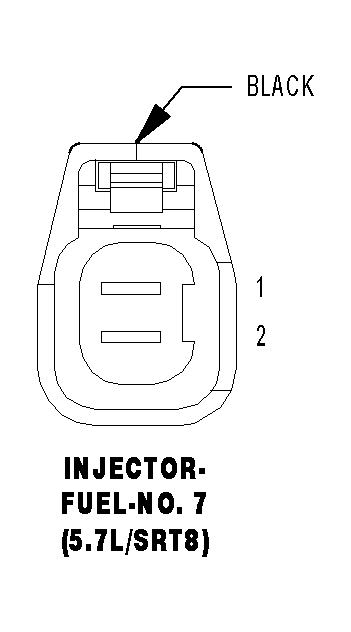

Fuel Injector 7 (5.7L/SRT8) Connector End View

INJECTOR-FUEL-NO. 7 (5.7L/SRT8) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K26 20BR/YL	INJECTOR CONTROL NO. 7
2	K343 16BR/YL	FUSED ASD RELAY OUTPUT 2
