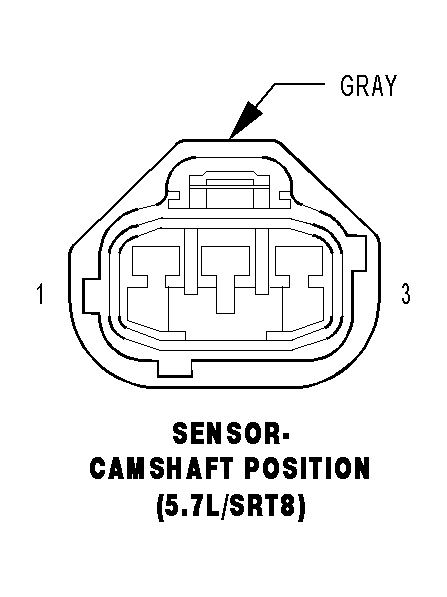

Camshaft Position Sensor (5.7L/SRT8) Connector End View

SENSOR-CAMSHAFT POSITION (5.7L/SRT8) - GRAY 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K44 20DB/GY	CMP SIGNAL
2	K900 20DB/DG	SENSOR GROUND
3	F856 20YL/PK	5 VOLT SUPPLY
