Tube - Spark Plug: Removal

WARNING: This page is about a different variant/trim than selected.

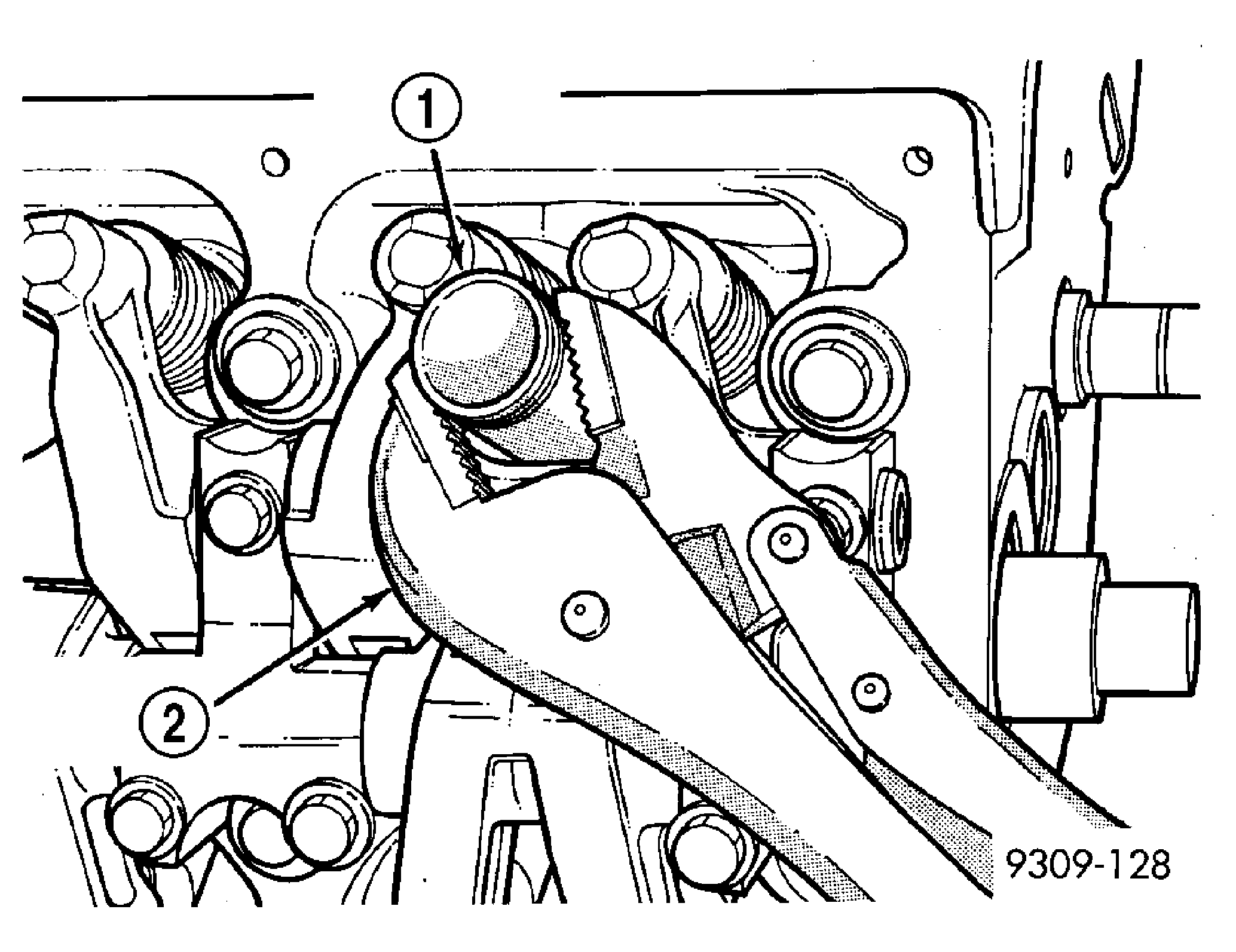

Fig 1: Servicing Spark Plug Tubes
GC0001867Courtesy of DAIMLERCHRYSLER CORP.
1 - SPARK PLUG TUBE
2 - LOCKING PLIERS
  1. Remove cylinder head cover(s). Refer to appropriate cylinder head cover.
  2. Using suitable locking pliers, remove the tube from the cylinder head and discard tube. See Fig 1.
  3. Clean area around spark plug with Mopar® Parts Cleaner or equivalent.
