Plate - Flex: Installation
WARNING: This page is about a different variant/trim than selected.
Courtesy of DAIMLERCHRYSLER CORP.

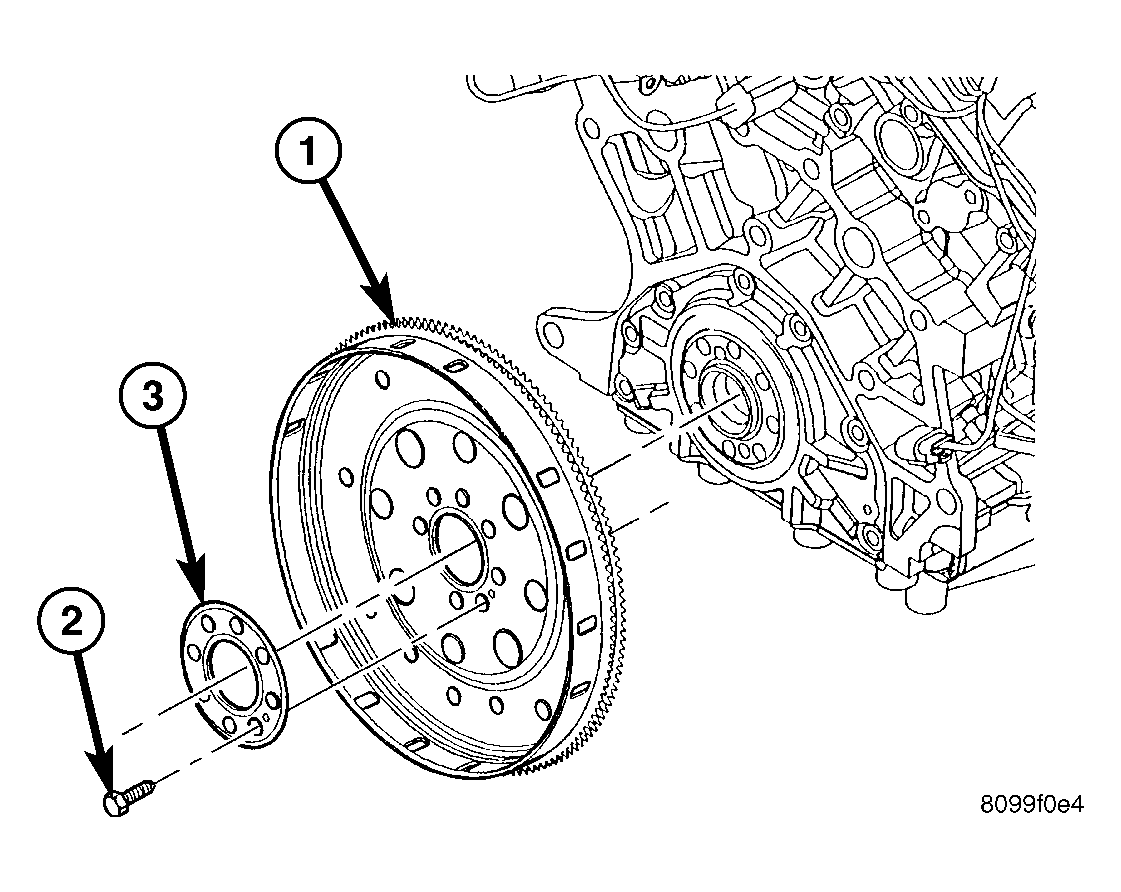

| 1 - FLEX PLATE |
| 2 - BOLT (QTY. 8) |
| 3 - BACKING PLATE |
- Position flex plate (1) with backing plate (3) on the crankshaft. See Fig 1.
- Apply Mopar® Lock & Seal Adhesive to the flex plate bolts (2).
- Install flex plate bolts (2). See Fig 1. Tighten bolts to 95 N.m (70 ft. lbs.).
- Install the transmission.
