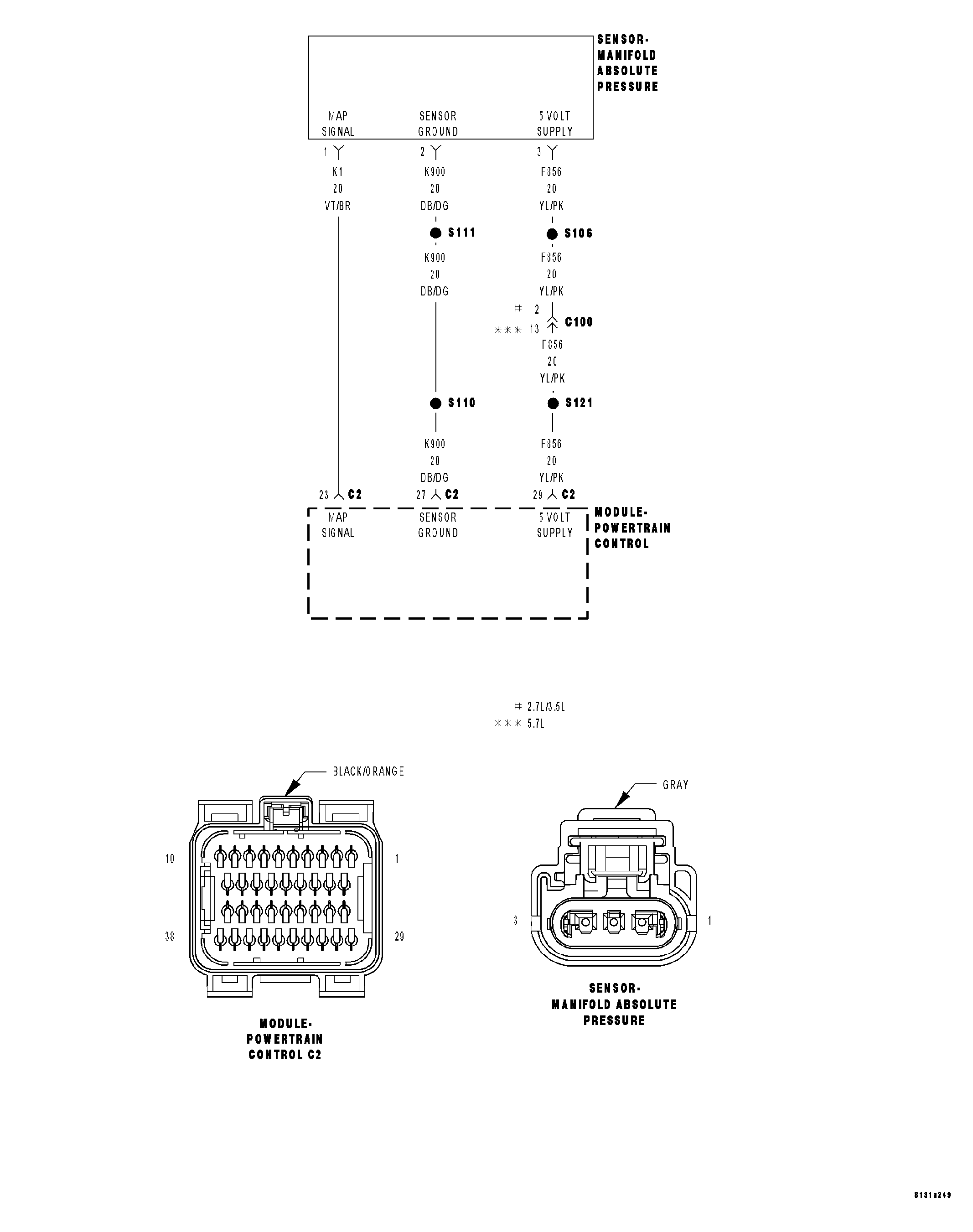

Home >> Chrysler >> 2006 >> 300 Base, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - DTCS P0016 To P0121, Diagnostic Code Index, Pre Diagnostic Troubleshooting Procedure & Intermittent Condition >> Electrical Diagnostics >> Diagnosis And Testing >> P0107-Manifold Absolute Pressure Sensor Circuit Low >> Circuit Schematic
