Sensor-Mass Air Flow (MAF): Installation

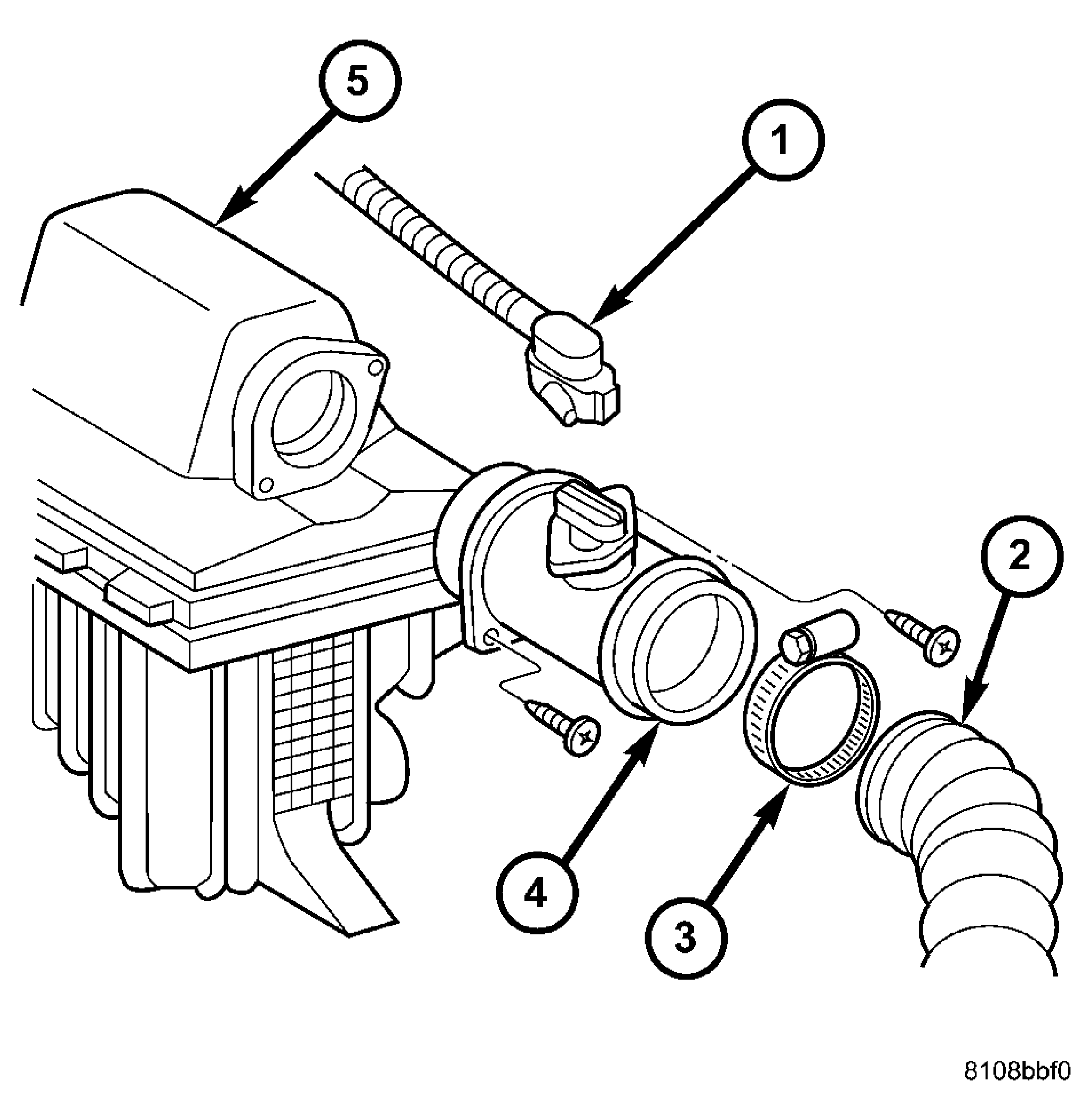

Fig 1: MANIFOLD AIR FLOW SENSOR

Courtesy of DAIMLERCHRYSLER CORP.

1 - WIRING HARNESS

2 - AIR INTAKE HOSE

3 - CLAMP

4 - MAF SENSOR

5 - AIR CLEANER HOUSING

1. Position the MAF sensor (4) to air cleaner housing (5) and install the retaining screws. See Fig 1.
2. Connect the air intake hose (2) to the MAF sensor and tighten clamp (3).
3. Connect the MAF wiring harness connector (1).
4. Connect negative battery cable.
