2.7L Engine (Service Information): Pump-Oil: Assembly

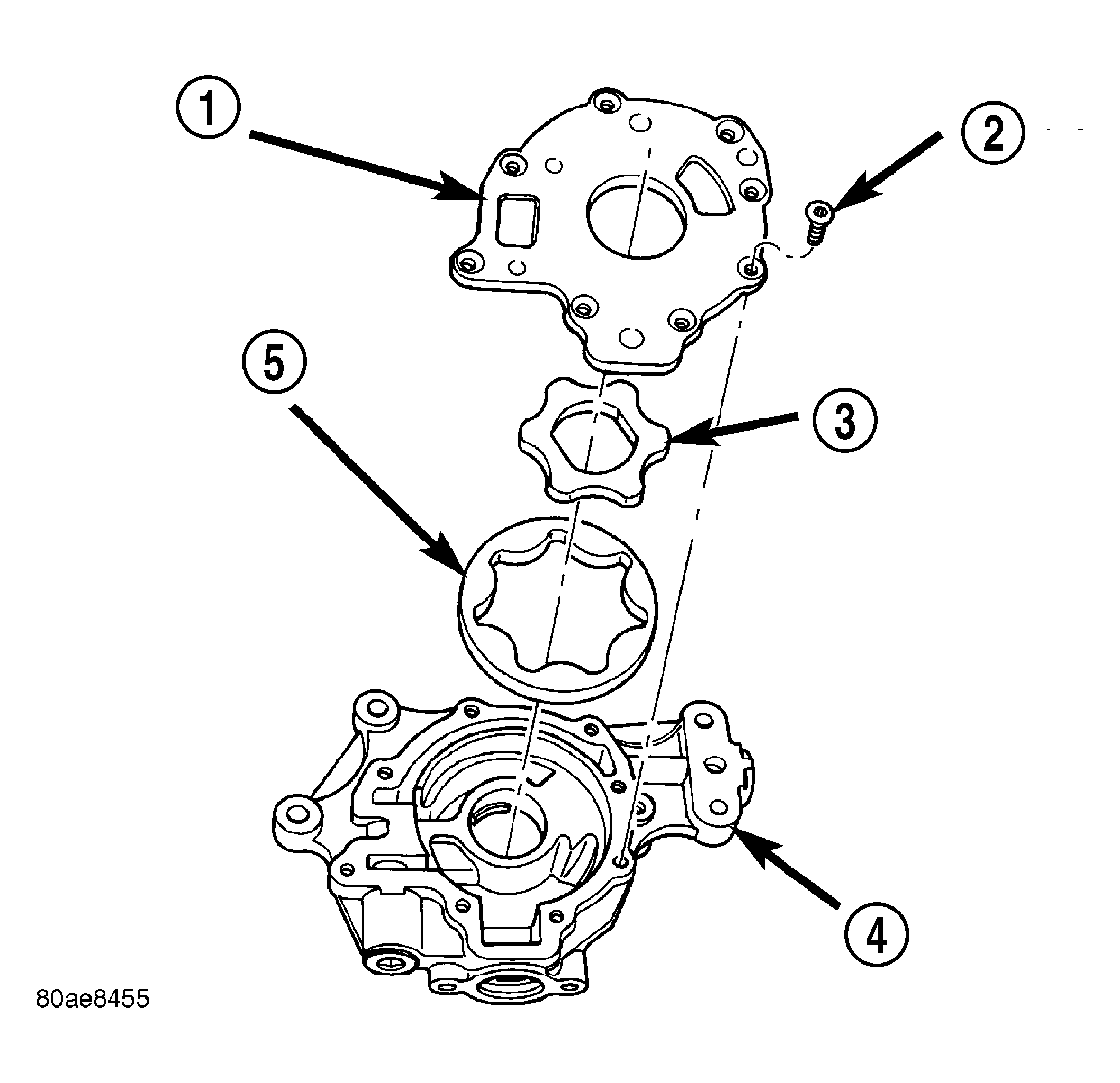

Fig 1: Oil Pump
GC0015365Courtesy of DAIMLERCHRYSLER CORP.
  1. Assemble pump using new parts as required.
  2. Tighten cover screws (2) to 12 N.m (105 in. lbs.).
  3. Prime oil pump before installation by filling rotor cavity with engine oil.
