Shifter Lever Assembly (RLE) Connector End View
Shifter Lever Assembly (RLE) Connector End View

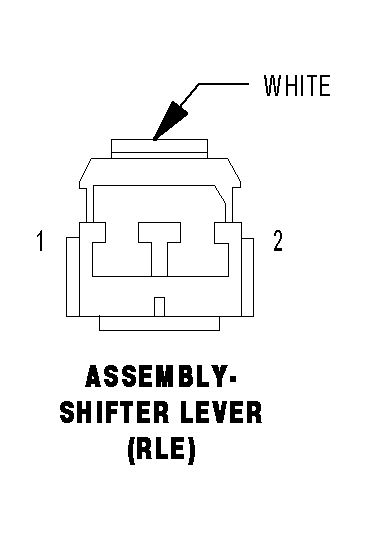

ASSEMBLY-SHIFTER LEVER (RLE) - WHITE 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z911 20BK/WT
GROUND
2
B29 20DG/WT
BRAKE SWITCH SIGNAL
