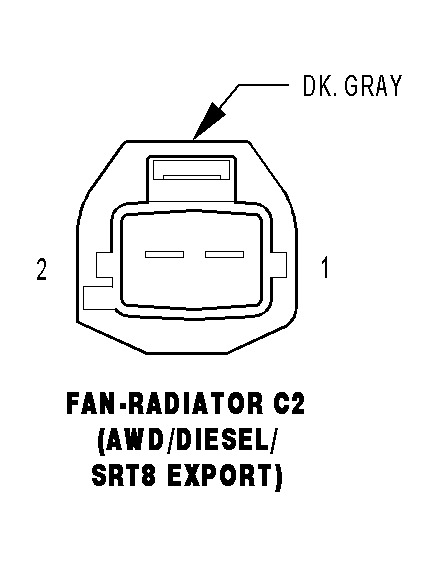

Radiator Fan (AWD/Diesel/SRT8 Export) Connector End View (C2)
Radiator Fan (AWD/Diesel/SRT8 Export) Connector End View (C2)
FAN-RADIATOR C2 (AWD/DIESEL/SRT8 EXPORT) - DK. GRAY 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K175 18BR/LB
RADIATOR FAN RELAY COIL SIGNAL
2
A934 10RD
FUSED B(+)
