Engine Cooling System & Automatic Transmission Cooling System: Engine: Radiator: Installation

  1. Be sure the air seal is in position before radiator is installed.  Slide radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 10 lbs. force.

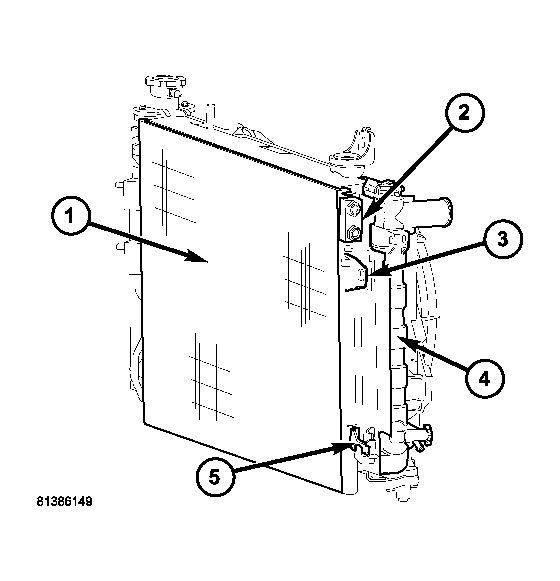

  2. Position air conditioning condenser onto the radiator lower mounts and engage upper mounting tabs. See Figure.

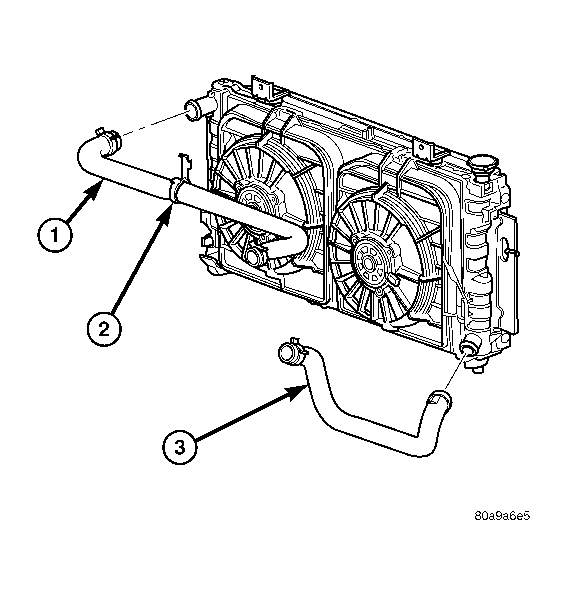

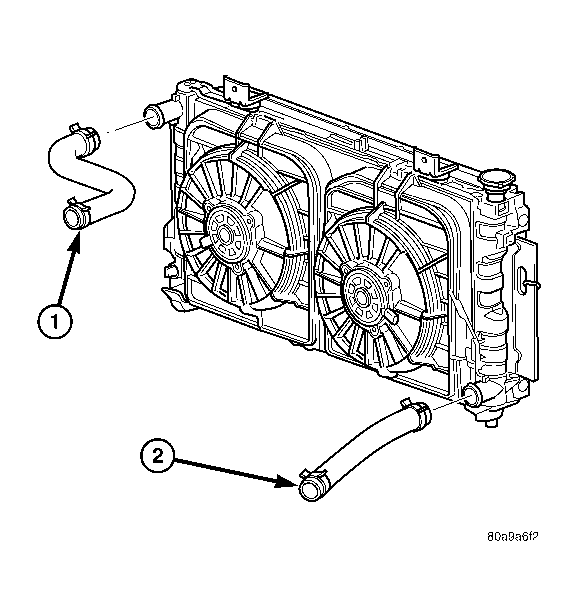

  3. Install the radiator upper and lower hoses. See Figure and Figure.
  4. Connect the coolant reserve/recovery hose.
  5. Connect the vapor purge solenoid to the mounting bracket.
  6. Install the radiator fans. (Refer to COOLING/ENGINE/RADIATOR FAN - INSTALLATION)
  7. Install the radiator upper crossmember support. (Refer to BODY/EXTERIOR/GRILLE OPENING REINFORCEMENT - INSTALLATION)
  8. Fill the cooling system. (Refer to COOLING - STANDARD PROCEDURE)
  9. Connect negative cable to battery.
