Radiator Fan Relay: Removal

Open hood.
Disconnect and isolate the battery negative cable.
Remove the radiator crossmember to front fascia closure panel.
Disconnect the relay electrical connector. See Fig 1.
Remove the rivet attaching the relay to the front bumper beam. See Fig 1.
Remove the relay.

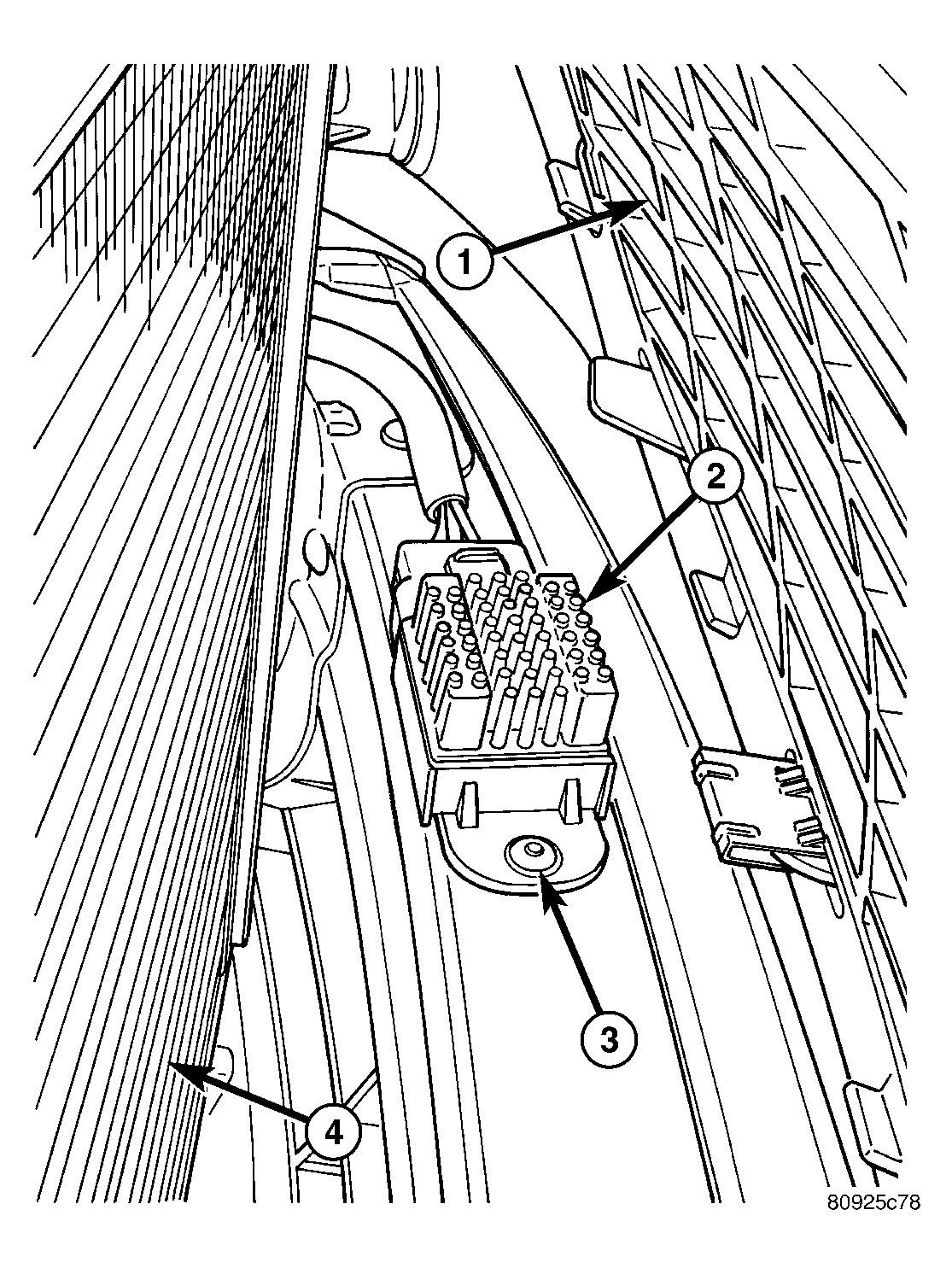

Fig 1: Radiator Fan Relay

GC0024441

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT FASCIA

2 - FAN RELAY

3 - RIVET

4 - A/C CONDENSER (FRONT SIDE)
