Engine Coolant Temperature Sensor - 3.3/3.8L: Installation

  1. Install engine coolant temperature sensor. See Figure. Tighten sensor to 7 N.m (60 in. lbs.).
  2. Connect electrical connector to sensor. See Figure.

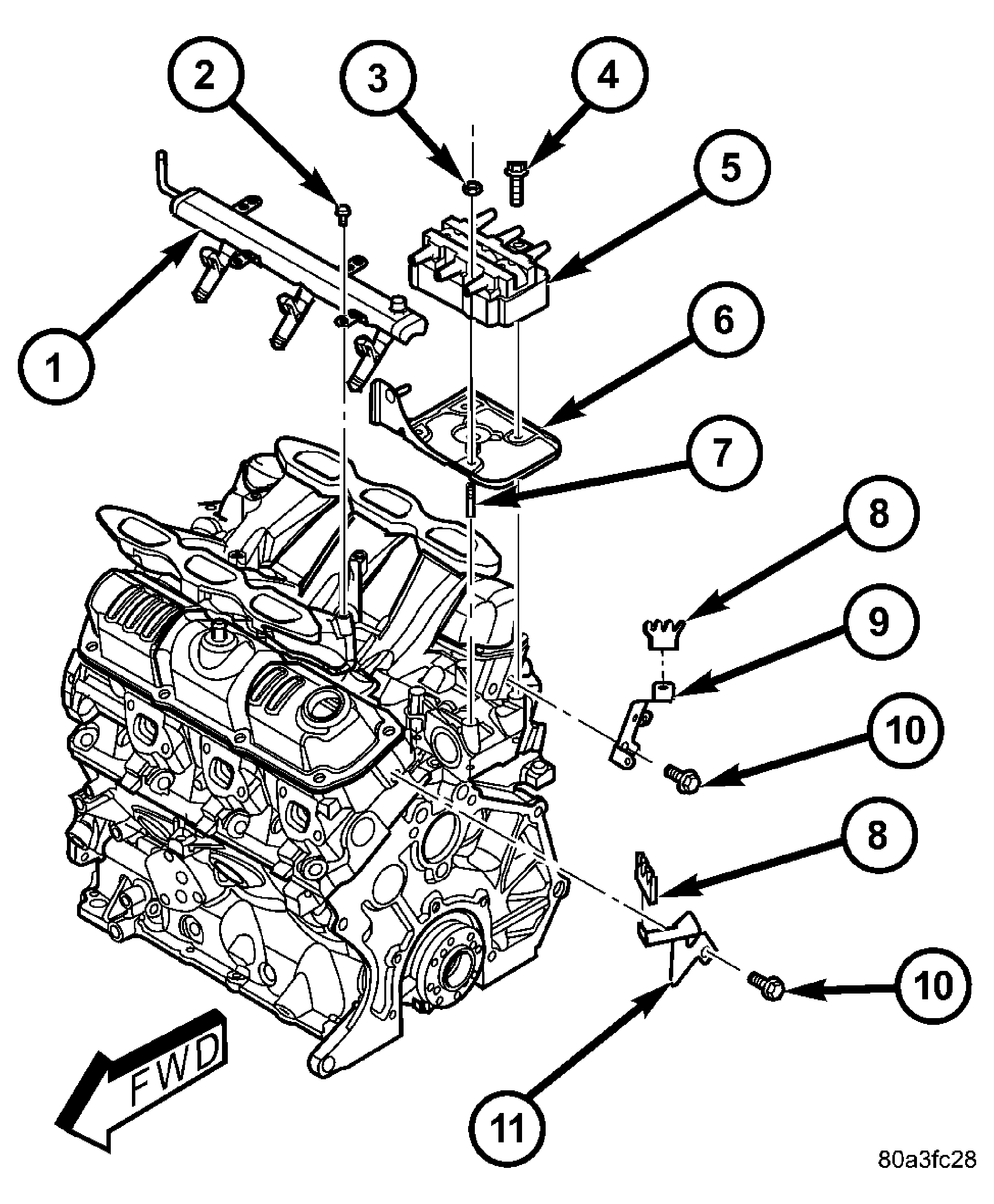

  3. Install ignition coil bracket. See Figure.
  4. Install ignition coil. See Figure.

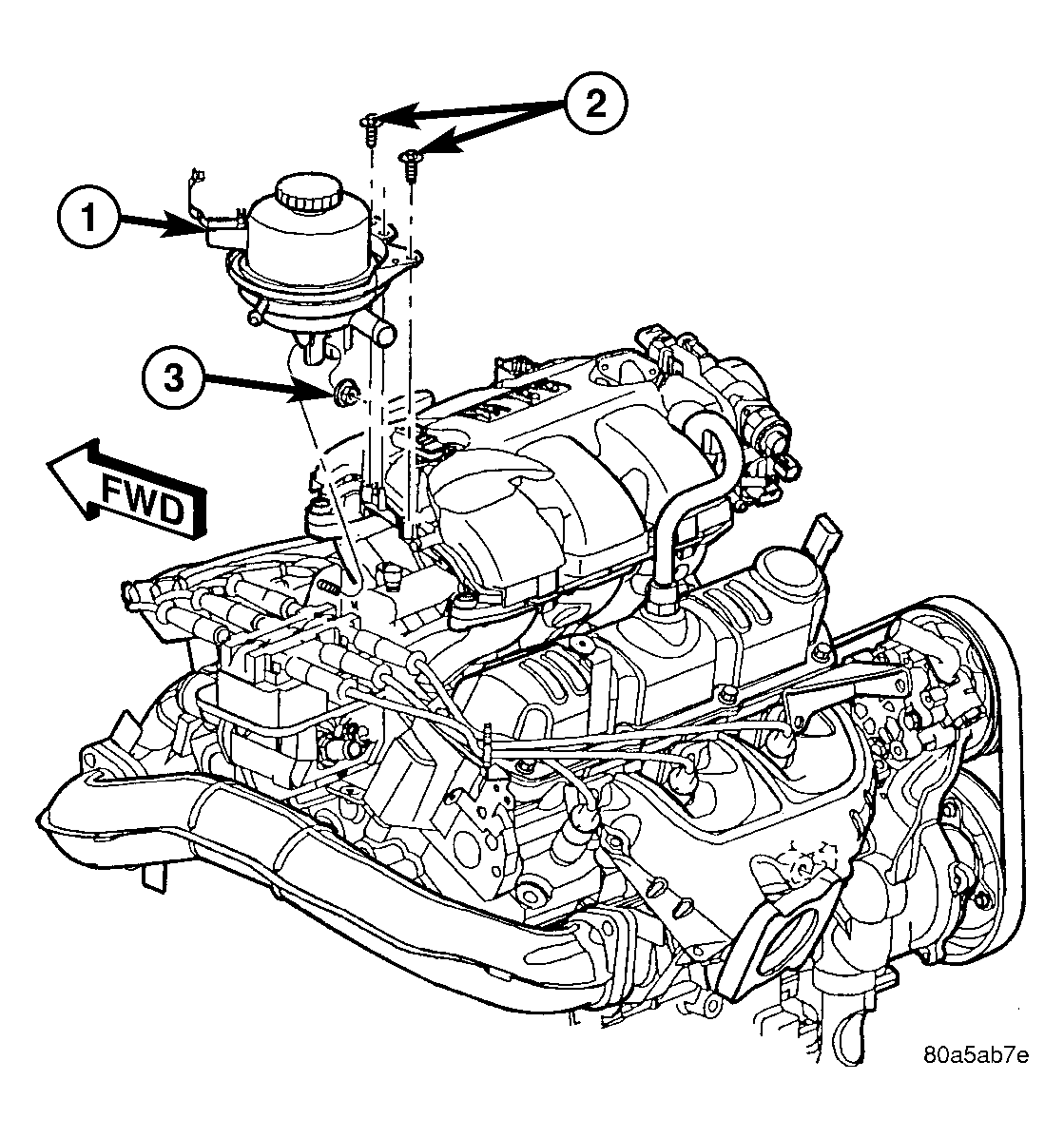

  5. Install power steering reservoir. See Figure.
  6. Fill cooling system. (Refer to COOLING - STANDARD PROCEDURE)
