Coolant Recovery Container: Removal

  1. Raise the vehicle on hoist.
  2. Remove the lower attaching screws. See Fig 1.
  3. Lower the vehicle.
  4. Remove the upper attaching screw. See Fig 1.
  5. Disconnect recovery hose from container. See Fig 1.
  6. Remove the recovery container.

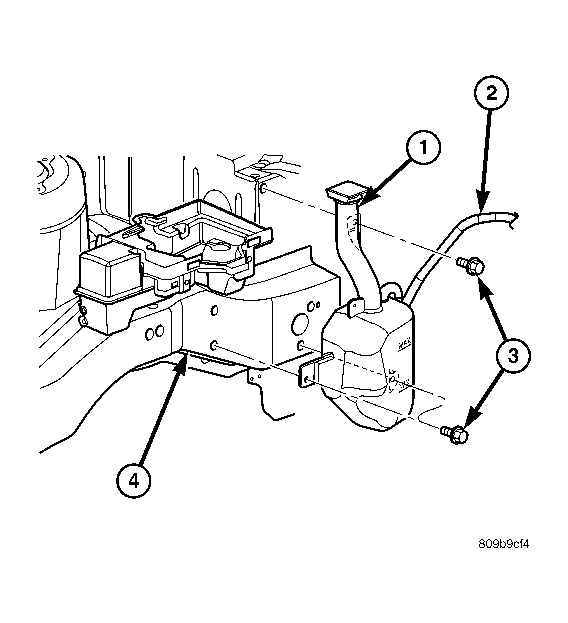

Fig 1: Coolant Recovery Container
GC0023436Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT RECOVERY CONTAINER
2 - HOSE
3 - BOLT
4 - SUB FRAME RAIL
