Cooling System

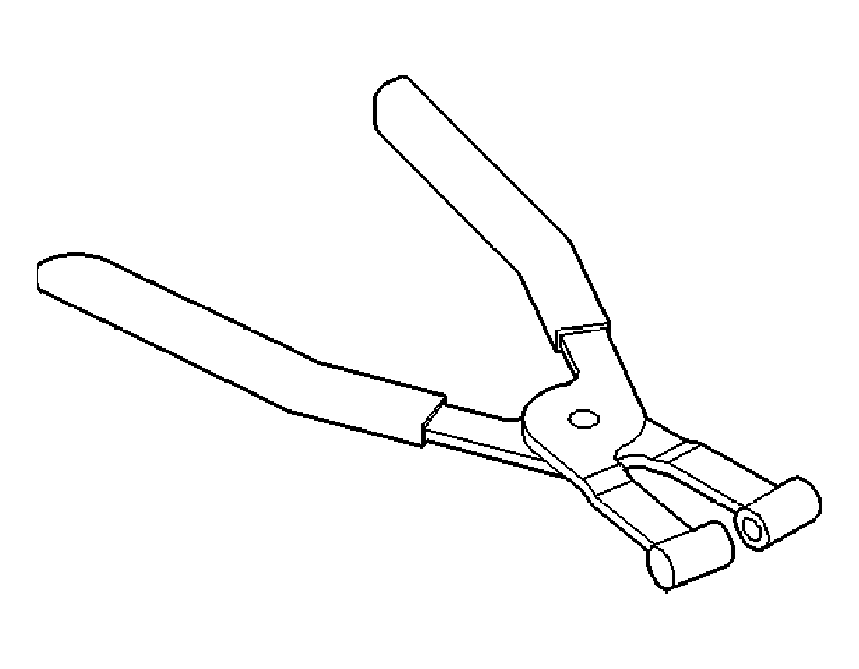

Fig 1: Hose Clamp Pliers 6094

GC0024406

Courtesy of DAIMLERCHRYSLER CORP.

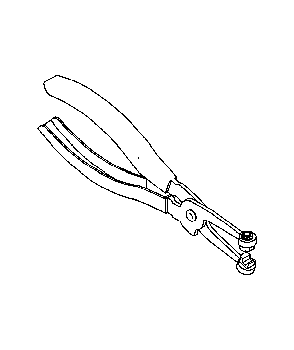

Fig 2: Hose Clamp Pliers 8495A

GC0024405

Courtesy of DAIMLERCHRYSLER CORP.

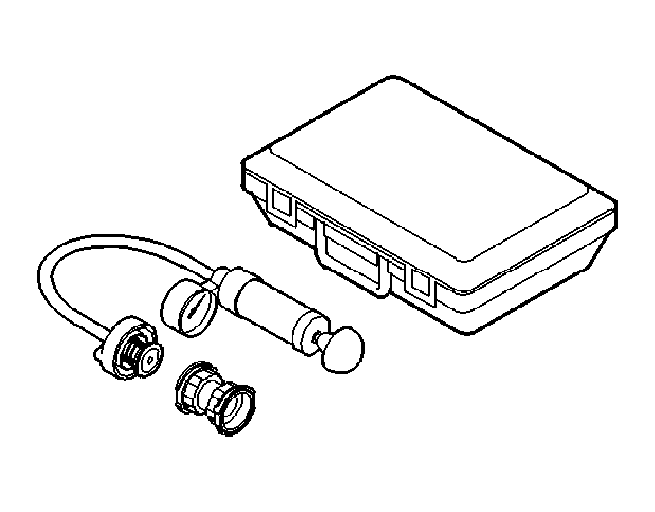

Fig 3: Cooling System Tester 7700

GC0024403

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Coolant Refractometer - 8286

GC0019836

Courtesy of DAIMLERCHRYSLER CORP.

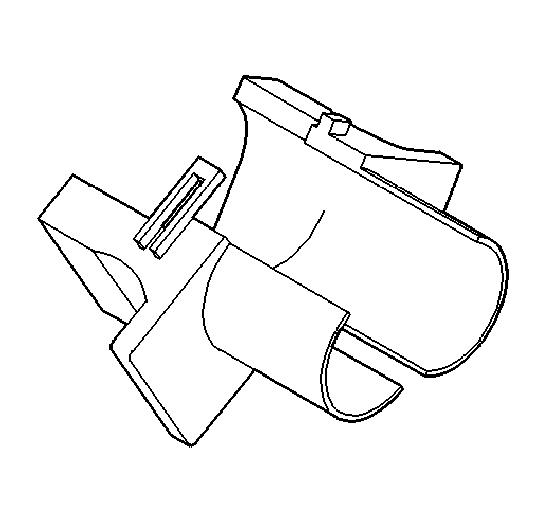

Fig 5: Tool 8875A

GC0024409

Courtesy of DAIMLERCHRYSLER CORP.

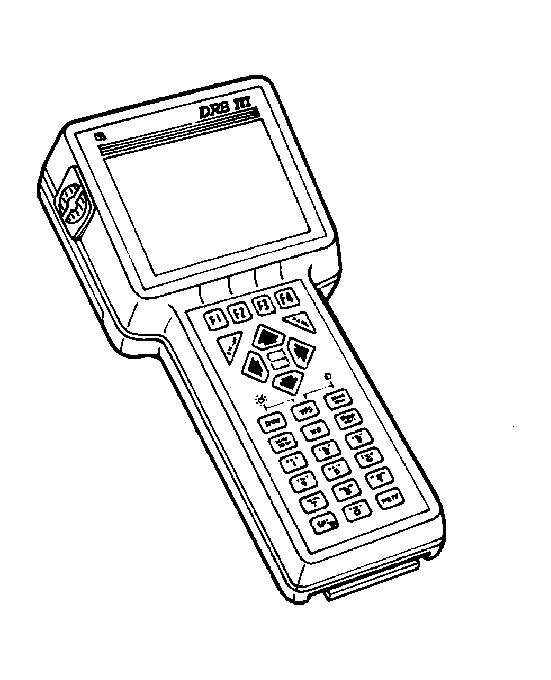

Fig 6: DRB III® with PEP Module - OT-CH6010A

GC0024408

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Belt Tension Gauge Adapter 8371

GC0024407

Courtesy of DAIMLERCHRYSLER CORP.

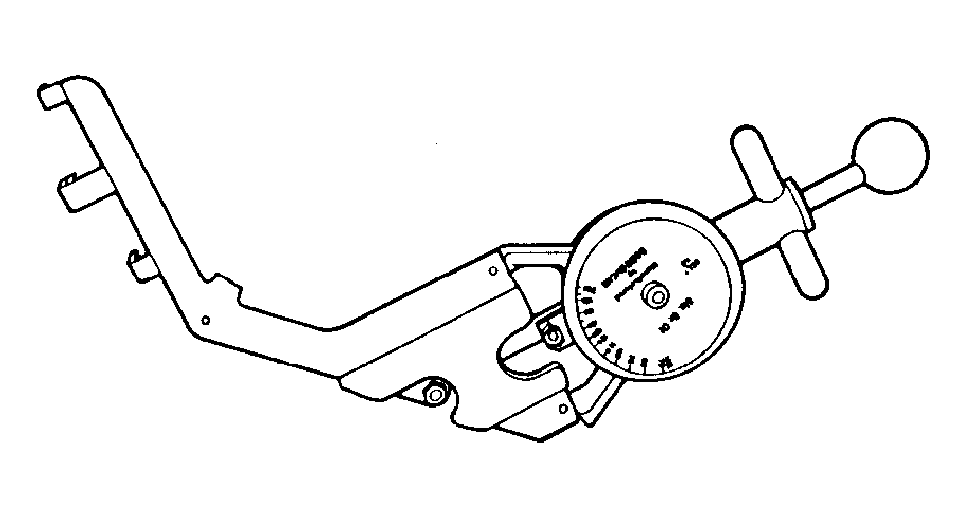

Fig 8: Belt Tension Gauge 7198A

GC0024404

Courtesy of DAIMLERCHRYSLER CORP.
