Knee Blocker Airbag: Installation

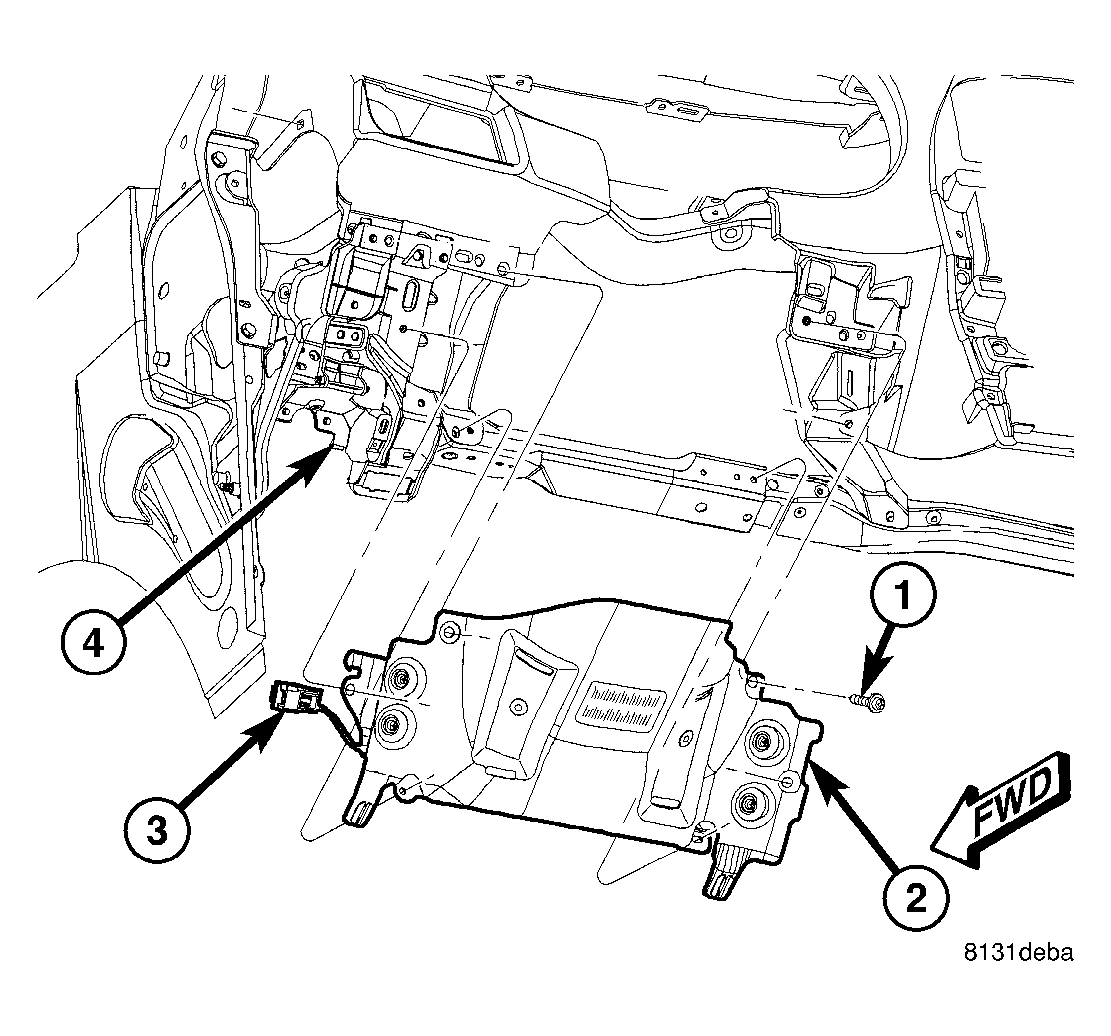

  1. Place the knee blocker airbag into position in the instrument panel opening. See Figure.
  2. Connect the one electrical connector. See Figure.
  3. Install the five knee blocker airbag retaining bolts. See Figure.

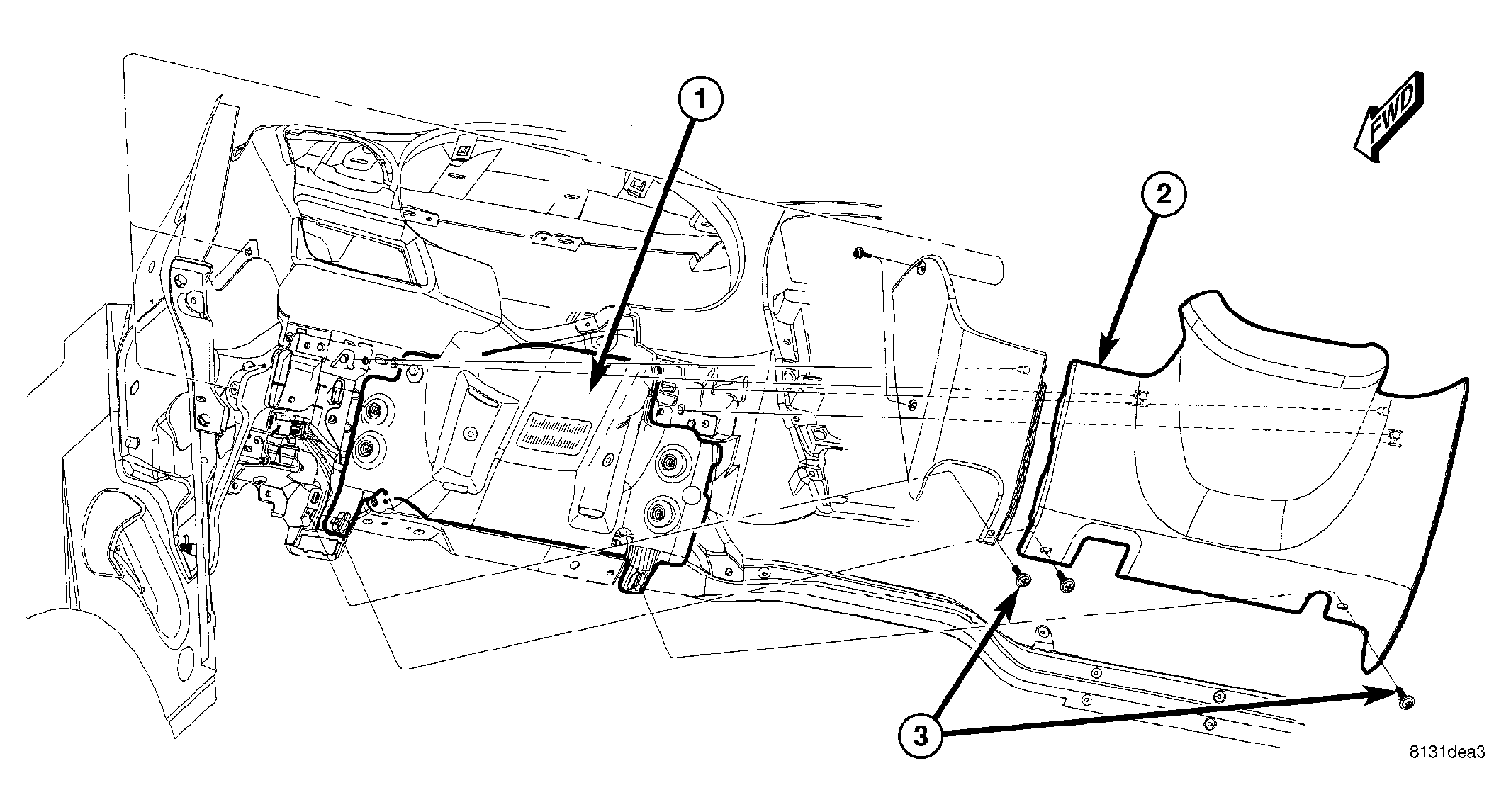

  4. Position the steering column opening cover over retaining slots and firmly snap into place. See Figure. Install the two retaining screws. See Figure(Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - INSTALLATION) .
    WARNING: Do not connect the battery negative cable (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM) . Personal injury or death may result if the system test is not performed first.
  5. Verify vehicle and system operation.
  6. Close hood.
