Belt Tension Sensor: Description

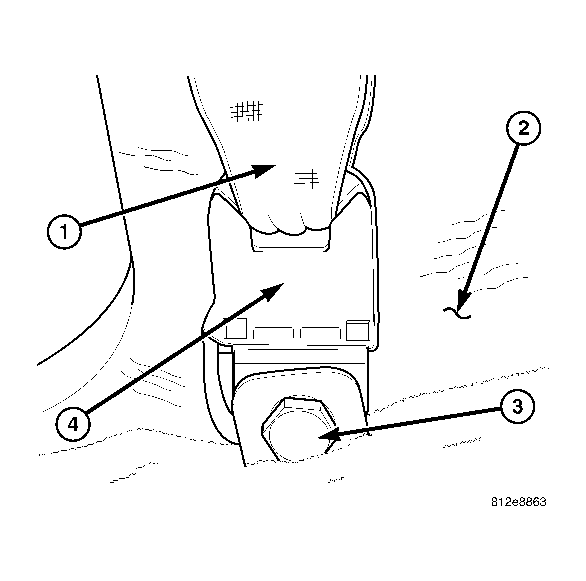

Fig 1: Belt Tension Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Vehicles equipped with the Occupant Classification System (OCS) include a belt tension sensor. See Fig 1. This sensor is integral to the passenger side front seat belt lower anchor which is secured to the lower B-pillar, on the passenger side. See Fig 2. The belt tension sensor consists of a molded plastic housing, a metal seat belt anchor loop, and a short pigtail wire. The electronic circuitry of the belt tension sensor is concealed and protected within the molded plastic housing.

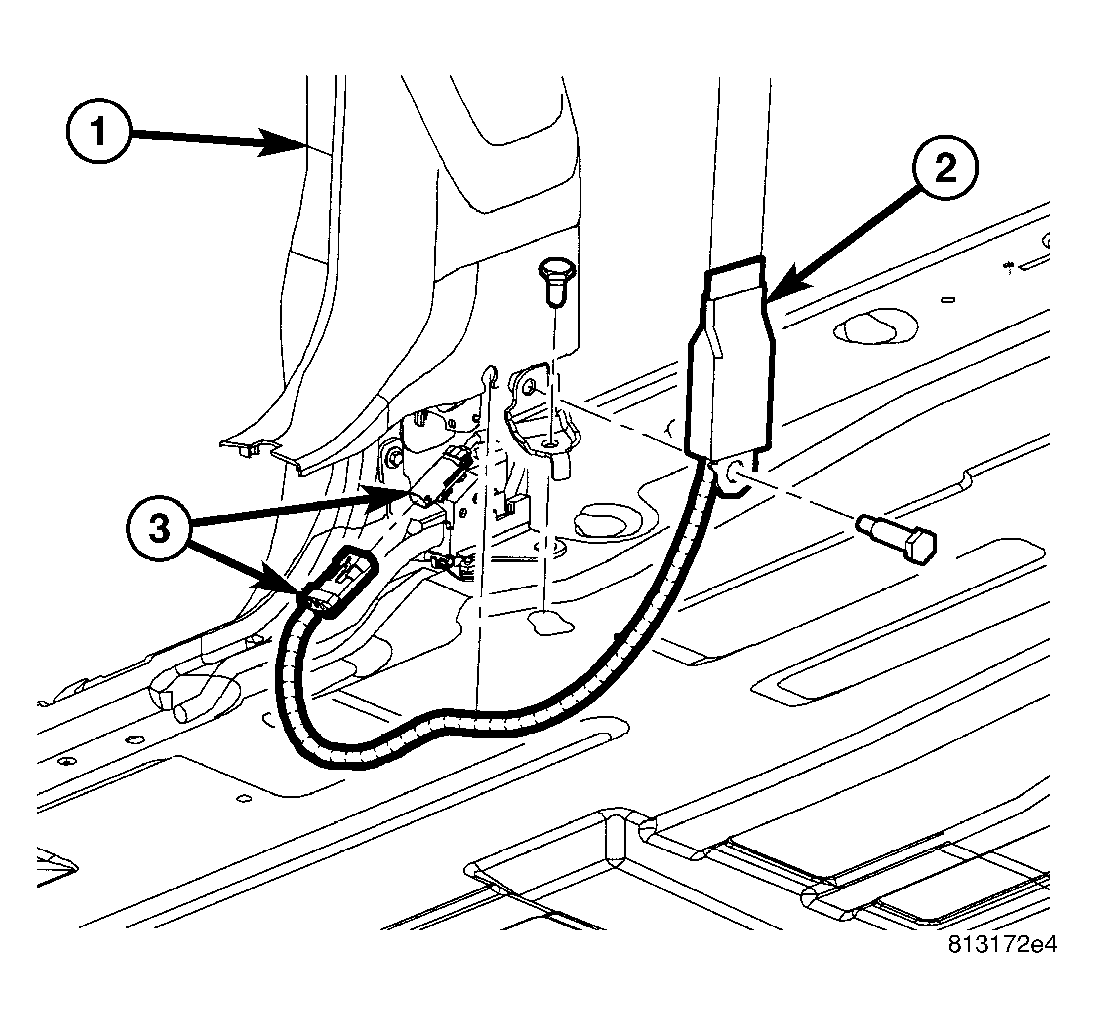

Fig 2: Belt Tension Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

The belt tension sensor cannot be repaired and, if faulty or damaged, the entire passenger side front seat belt and retractor unit must be replaced (Refer to ELECTRICAL/RESTRAINTS/SEAT BELT OUTBOARD FRONT - REMOVAL) .
