Front Mount: Installation

WARNING: This page is about a different car, the 2005 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

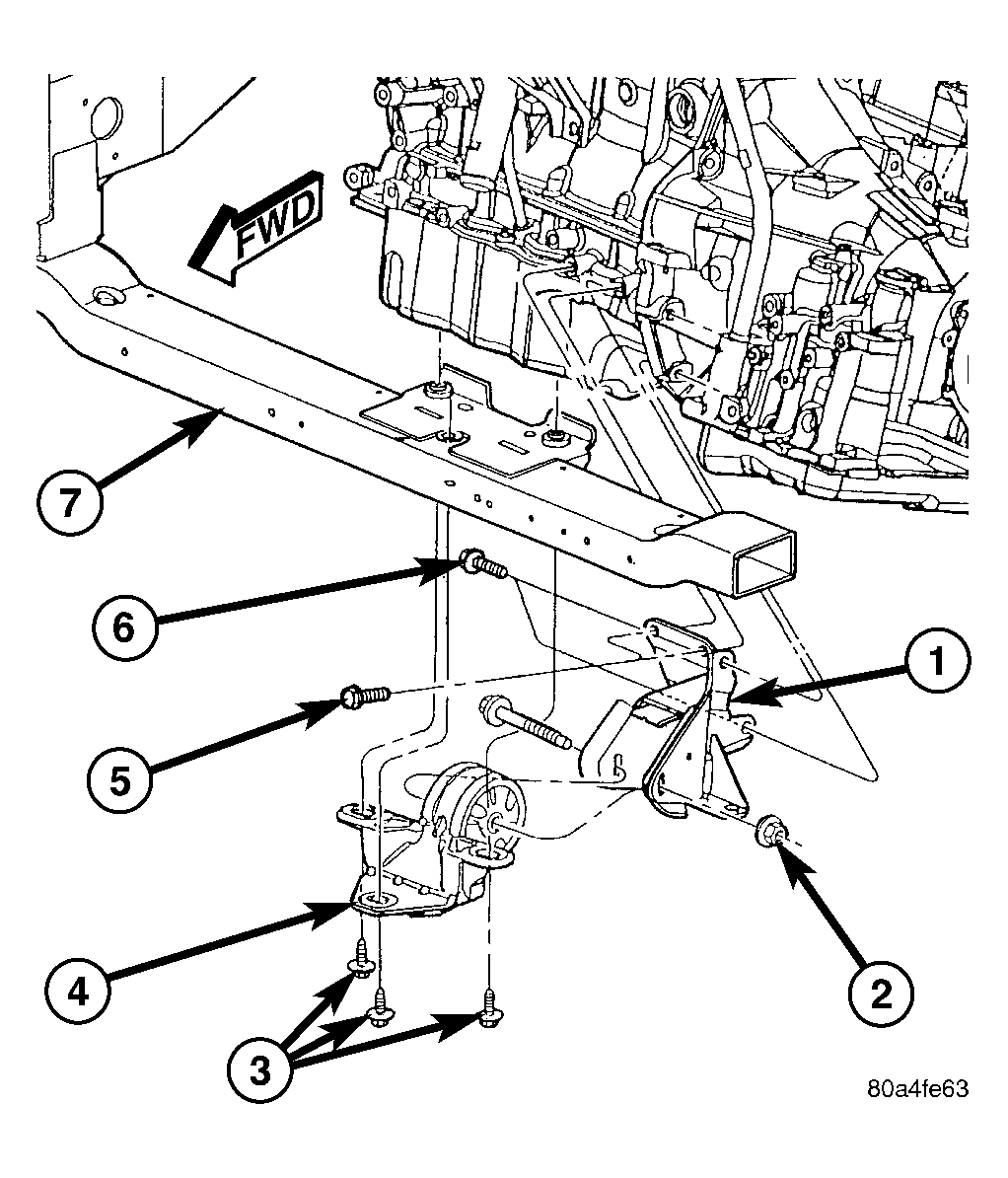

  1. Install the front mount bracket to engine, if removed. See Figure.
  2. Install the insulator mount assembly. See Figure.
  3. Install the front engine mount through bolt to the insulator. See Figure.
  4. Lower the vehicle.
