Engine Mounting: Description
WARNING: This page is about a different car, the 2005 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

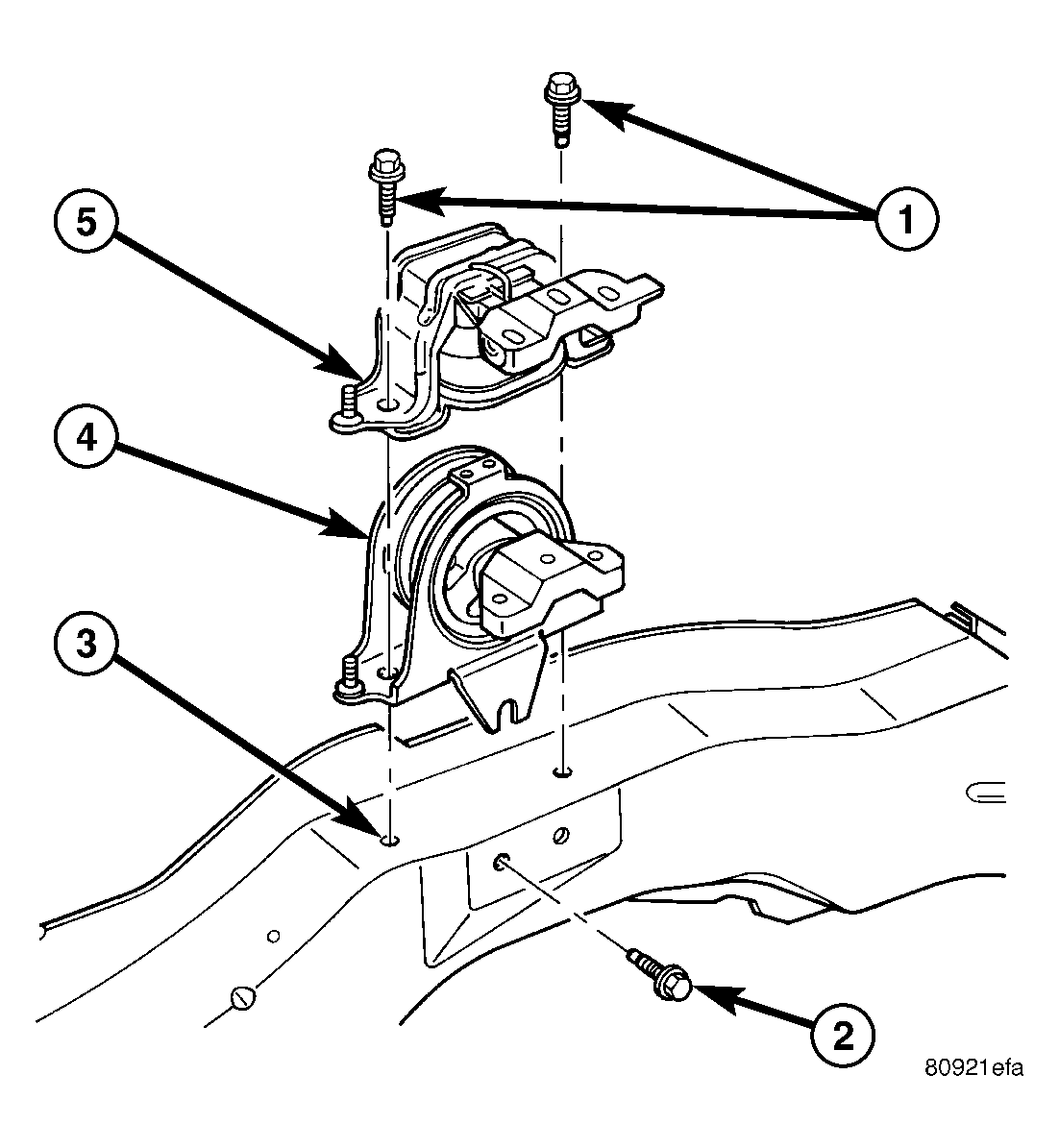

The engine mounting system consist of four mounts; right and a left side support the powertrain, and a front and a rear mount control powertrain torque. The right side mount is a hydrolytic, all others are of molded rubber material. See Fig 1.
| 1 - BOLT |
| 2 - BOLT |
| 3 - FRAME RAIL |
| 4 - RIGHT MOUNT - 2.4L ENGINE |
| 5 - RIGHT MOUNT - 3.3/3.8L ENGINE |
