Right Speed Control Switch - White 2 Way

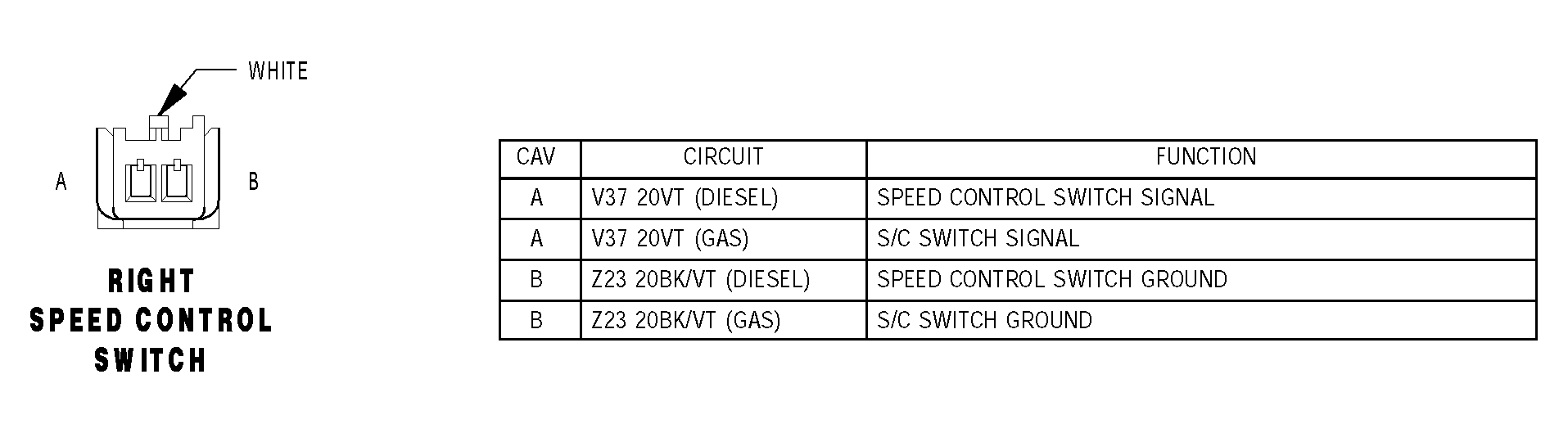

Fig 1: Identifying Right Speed Control Switch - White 2 Way Connector Pinouts

G04549266

Courtesy of DAIMLERCHRYSLER CORP.
