Ambient Temperature Sensor - Black 2 Way

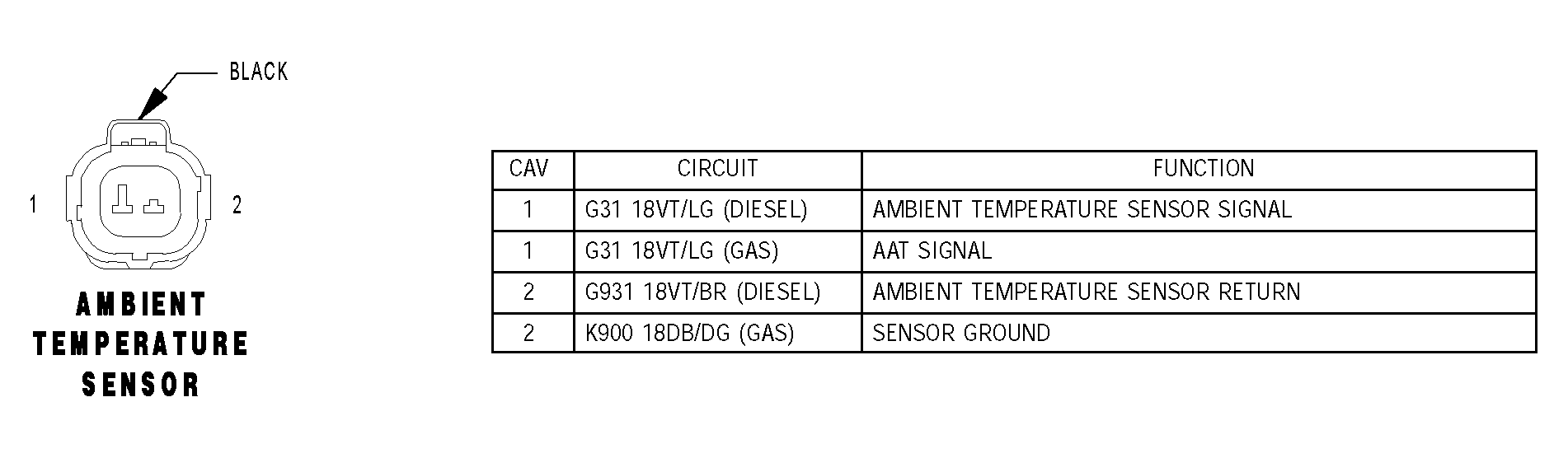

Fig 1: Identifying Ambient Temperature Sensor Connector Pinouts

G04549229

Courtesy of DAIMLERCHRYSLER CORP.
