EVAP Canister And NVLD Assembly Locations

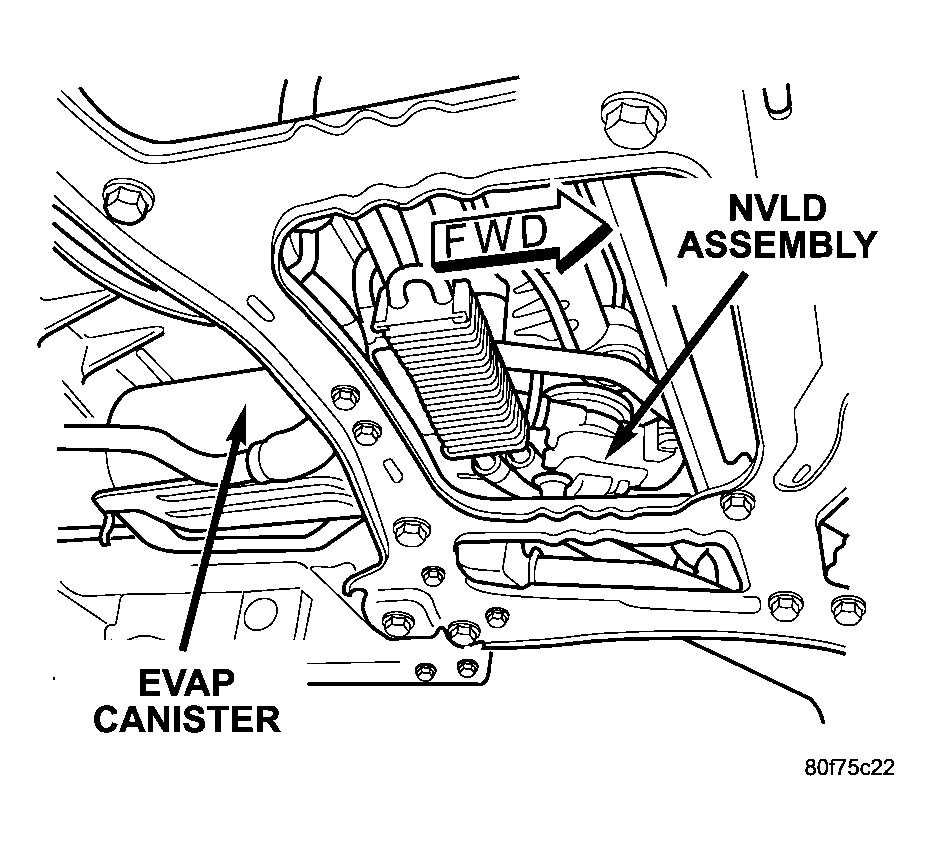

Fig 1: Locating EVAP Canister And NVLD Assembly

Courtesy of DAIMLERCHRYSLER CORP.

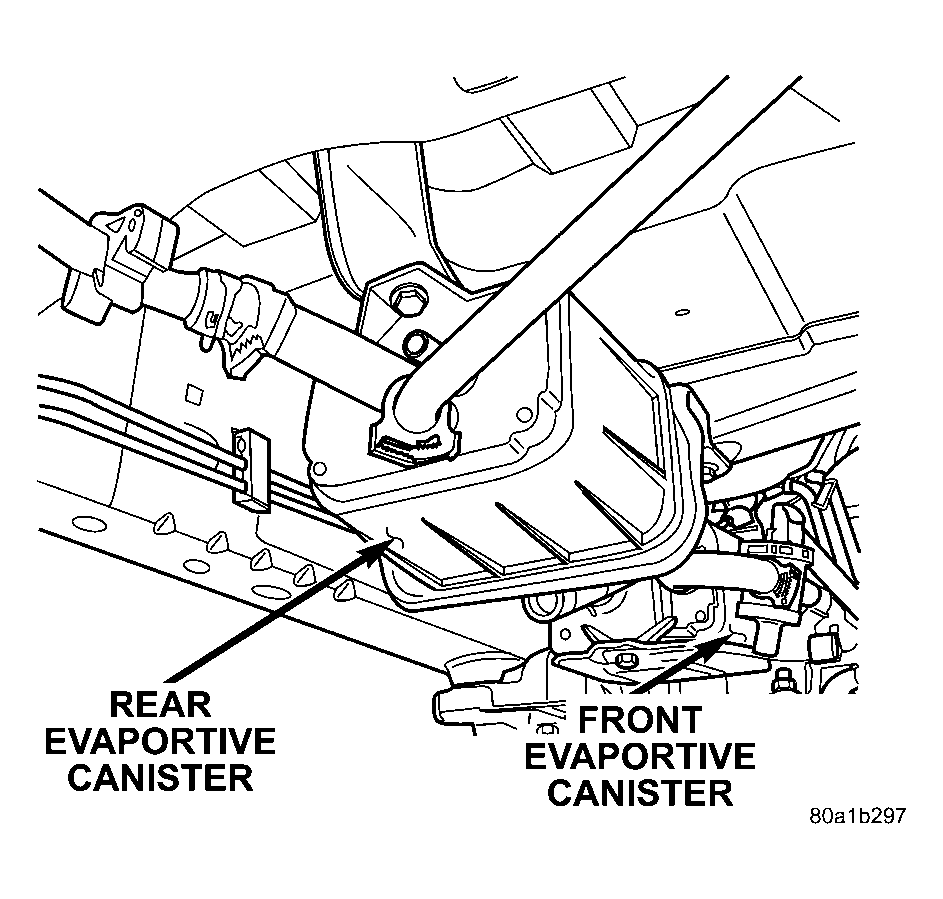

Fig 2: Locating Rear Evaporative Canister And Front Evaporative Canister

Courtesy of DAIMLERCHRYSLER CORP.

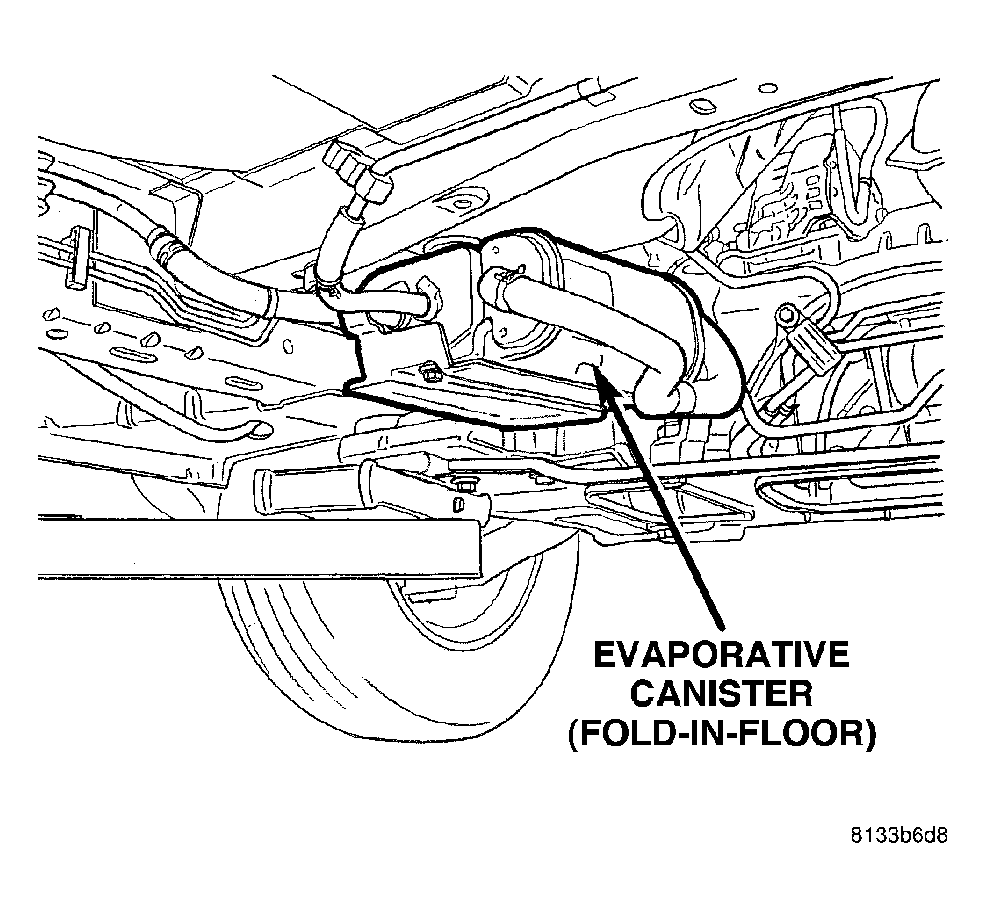

Fig 3: Locating Evaporative Canister (Fold-In-Floor)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Locating Evaporative Canister

Courtesy of DAIMLERCHRYSLER CORP.
