Natural Vac Leak Detection ASSY: Removal

1. Disconnect thew negative battery cable.
2. Raise vehicle and support. See Fig 1.
   Fig 1: NVLD Location

   Courtesy of DAIMLERCHRYSLER CORP.
3. Unlock and disconnect the electrical connector.
4. Remove the hoses from the NVLD valve.
5. Remove the 2 fasteners.
6. Remove the valve and bracket from vehicle. See Fig 2.

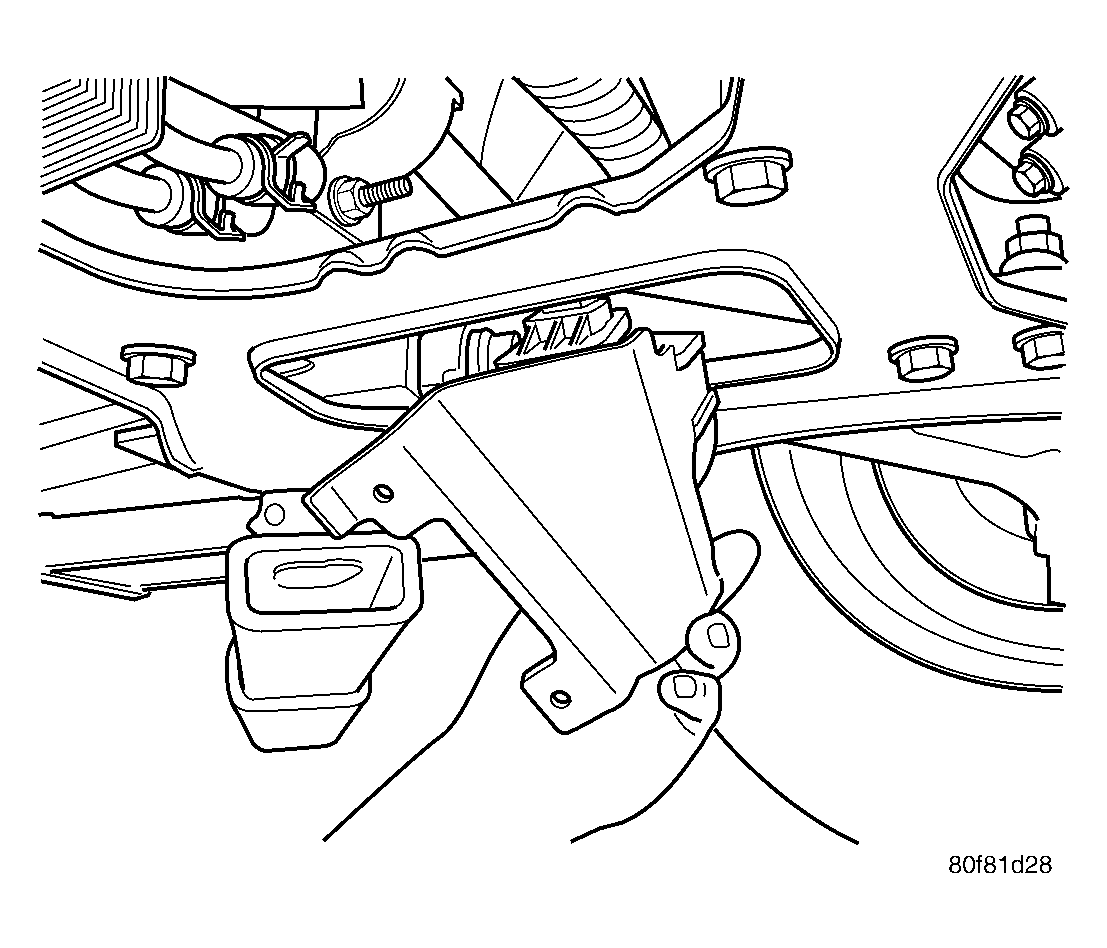

   Fig 2: NVLD Removal/Installation

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove valve from bracket. See Fig 3.

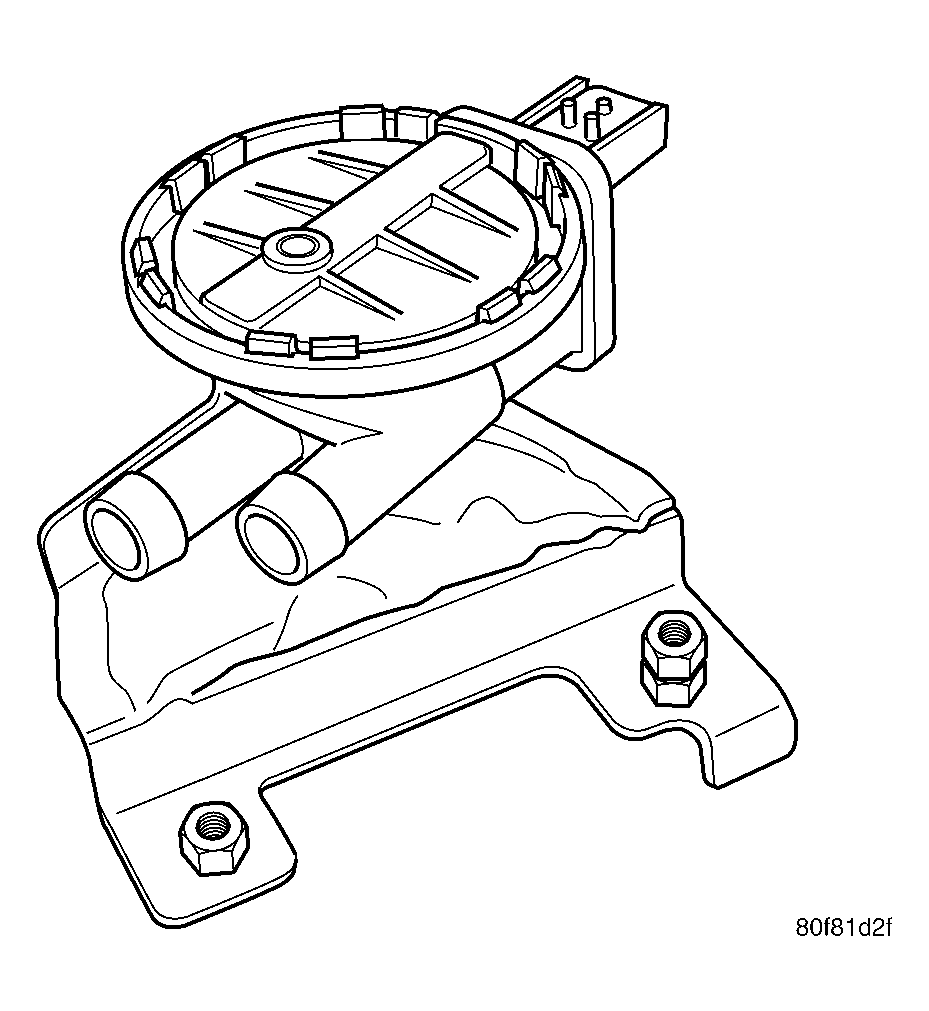

Fig 3: NVLD Valve And Bracket

Courtesy of DAIMLERCHRYSLER CORP.
