Right Remote Radio Switch Connector End View
Right Remote Radio Switch Connector End View

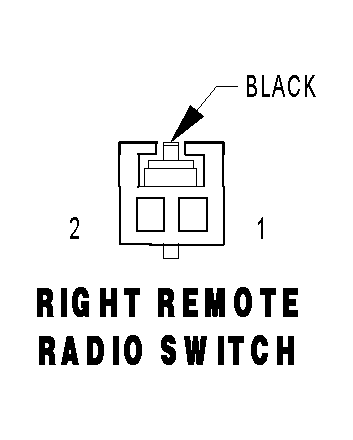

RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
X10 22RD/DB
RADIO CONTROL MUX
2
X20 22RD/BK
RADIO CONTROL MUX RETURN
