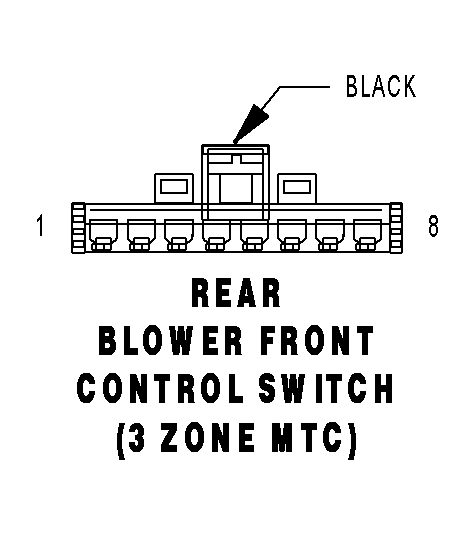

Rear Blower Front Control 3 Zone Manual Temperature Control Switch Connector End View
REAR BLOWER FRONT CONTROL SWITCH (3 ZONE MTC) - BLACK 8 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Z440 12BK/DG |
GROUND |
| 3 |
- |
- |
| 4 |
C153 12DB/BR |
REAR BLOWER MOTOR HIGH |
| 5 |
- |
- |
| 6 |
C152 16LB/LG |
REAR BLOWER MOTOR MED |
| 7 |
C151 18LB/DG |
REAR BLOWER MOTOR LOW |
| 8 |
C50 12DB/OR |
REAR BLOWER FRONT CONTROL FEED |
