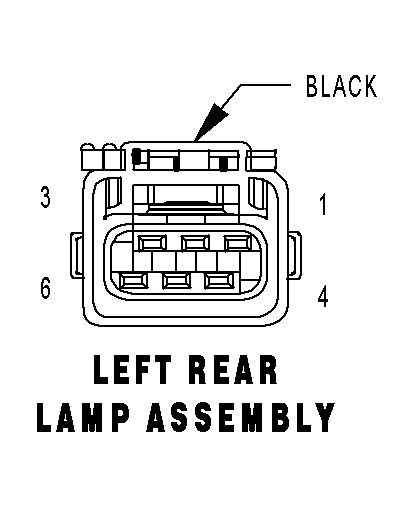

Left Rear Lamp Assembly Connector End View
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L63 18WT/DG (EXCEPT EXPORT) | LEFT REAR TURN SIGNAL DRIVER |
| 1 | Z363 18BK/DG (EXPORT) | GROUND |
| 2 | L63 18WT/DG (EXPORT) | LEFT REAR TURN SIGNAL DRIVER |
| 3 | L50 18WT/TN (DIESEL EXPORT) | PRIMARY BRAKE SWITCH SIGNAL |
| 3 | L77 18WT/BR (EXCEPT EXPORT) | FUSED PARK LAMP RELAY OUTPUT (LEFT) |
| 3 | L50 18WT/TN (GAS EXPORT) | BRAKE LAMP SWITCH OUTPUT |
| 4 | L1 18WT/LG (EXCEPT TRAILER TOW) | BACK-UP LAMP FEED |
| 4 | L1 18WT/BR (TRAILER TOW) | BACK-UP LAMP FEED |
| 5 | Z363 18BK/DG (EXCEPT EXPORT) | GROUND |
| 5 | L38 20WT/YL (EXPORT) | REAR FOG LAMP SWITCH OUTPUT |
| 6 | L77 18WT/BR (EXPORT) | FUSED PARK LAMP RELAY OUTPUT (LEFT) |
