Integrated Power Module

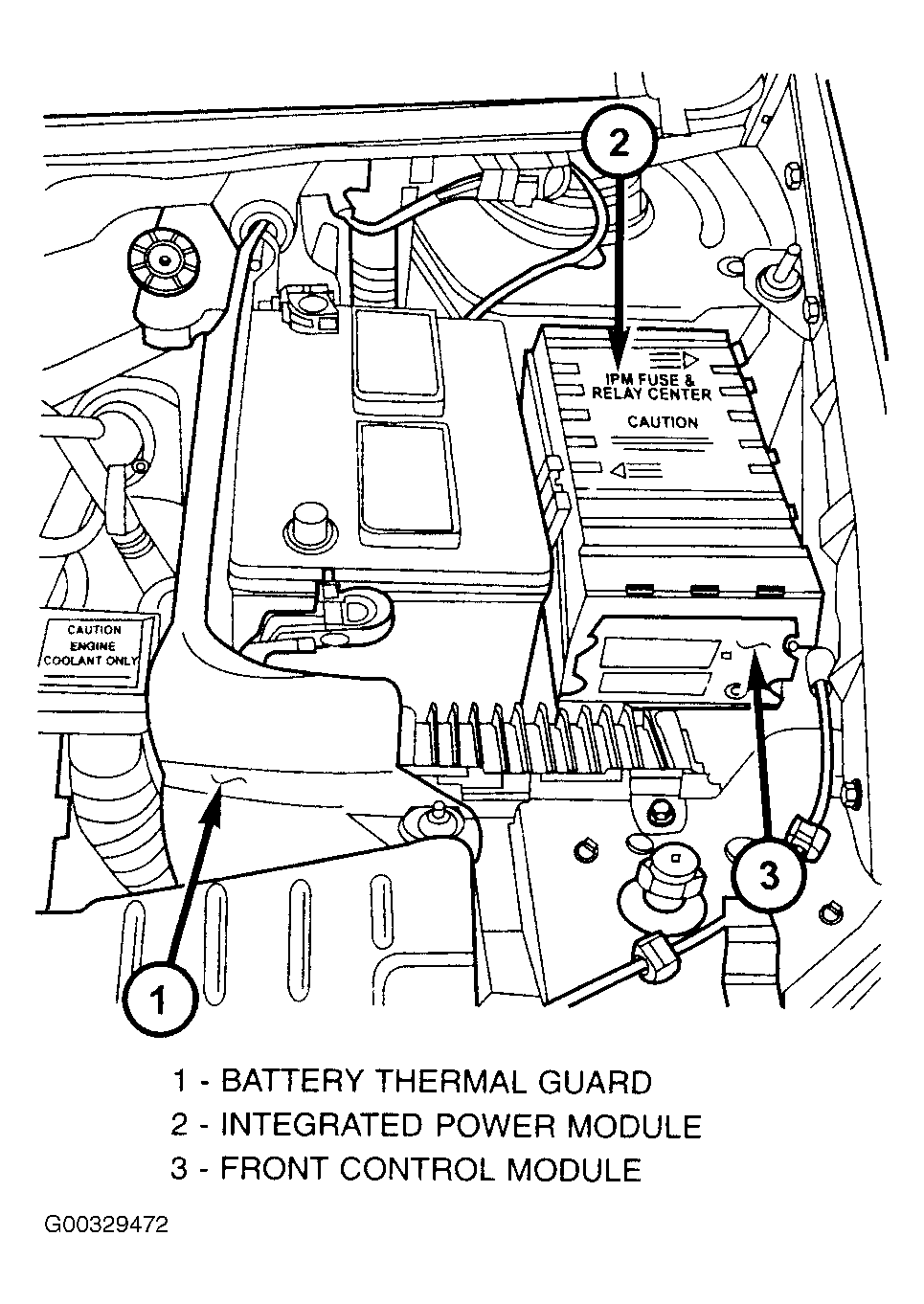

For integrated power module location, see Fig 1.

Fig 1: Locating Integrated Power Module

Courtesy of CHRYSLER CORP.

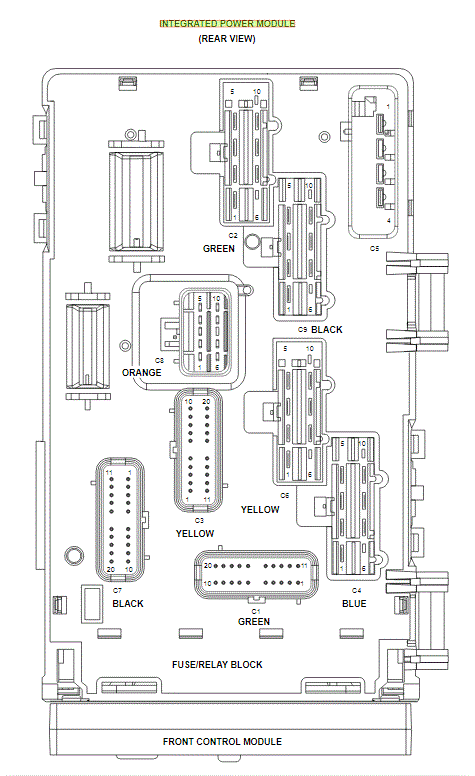

Fig 2: Identifying Integrated Power Module Components

Courtesy of CHRYSLER CORP.

INTEGRATED POWER MODULE FUSES

FUSE NO.	AMPS	FUNCTION
1	20A	Fog Lights
2	15A	Left Park/Tail Light
3	15A	Right Park/Tail Light
4	30A	Front Wipers
5	20A	RDO/IP Ignition
6	20A	12 Volt Out Ignition or Battery
8	20A	Horn
9	40A	Anti-Lock Brake System Pump
10	40A	Front Blower Motor
11	20A	EWD/Rear Wiper
12	25A	Rear Blower
13	40A	Electronic Brake Light (EBL)
14	20A	Ignition Off Draw (IOD)
15	20A	Electronic Automatic Transaxle (EATX) Battery
16	25A	ASD
17	20A	Fuel Pump
18	15A	A/C Clutch
19	40A	Body Control Module (BCM) Feed 1
20	30A	Central Amplifier
21	25A	Anti-Lock Brake System (ABS) Module
22	40A	Seats
23	10A	Ignition Switch
24	20A	Hazard
26	20A	Stop Lamp
27	40A	Radiator Fan
28	40A	Power Windows
30	40A	Headlight Washers (Export Only)
31	40A	Power Sliding Door
32	40A	Power Liftgate
33	15A	Front/Rear Washer

Fig 3: Integrated Power Module Connector Identification

Courtesy of CHRYSLER CORP.
