Remote Switch

  1. Remove power mirror switch. (Refer to ELECTRICAL/POWER MIRRORS/POWER MIRROR SWITCH - REMOVAL) .
  2. Disconnect wiring harness at switch connector.
  3. Using a ohmmeter, test for continuity between the terminals of the switch. See Fig 1.

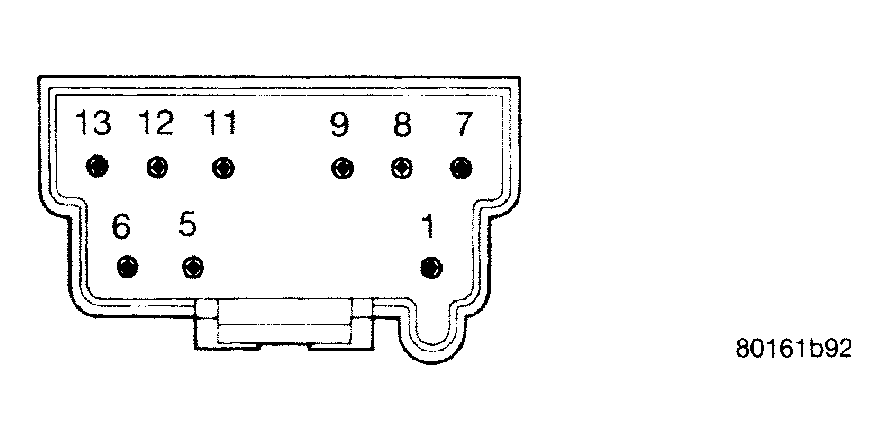

    Fig 1: Identifying Mirror Switch Terminals
    GC0024795Courtesy of DAIMLERCHRYSLER CORP.
    MIRROR SWITCH TEST

    - MIRROR SELECT SWITCH IN "LEFT" POSITION
    Move Button  Continuity Between
    UP PIN 9 - PIN 12,
    PIN 6 - PIN 11,
    PIN 9 - PIN 13
    LEFT PIN 9 - PIN 7,
    PIN 6 - PIN 11,
    PIN 9 - PIN 8
    DOWN PIN 9 - PIN 6,
    PIN 12 - PIN 11,
    PIN 13 - PIN 11
    RIGHT PIN 9 - PIN 6,
    PIN 7 - PIN 11,
    PIN 8 - PIN 11
    - MIRROR SELECT SWITCH IN "RIGHT" POSITION
    Move Button  Continuity Between
    UP PIN 9 - PIN 13,
    PIN 1 - PIN 11,
    PIN 9 - PIN 12
    LEFT PIN 9 - PIN 8,
    PIN 1 - PIN 11,
    PIN 9 - PIN 7
    DOWN PIN 9 - PIN 1,
    PIN 13 - PIN 11,
    PIN 12 - PIN 11
    RIGHT PIN 9 - PIN 1,
    PIN 8 - PIN 11,
    PIN 7 - PIN 11
  4. If results shown in the table are not obtained, replace the switch.
