Antenna Module - Export: Removal

Disconnect and isolate the battery negative cable.
Lower headliner as necessary to access antenna module. See Fig 1.

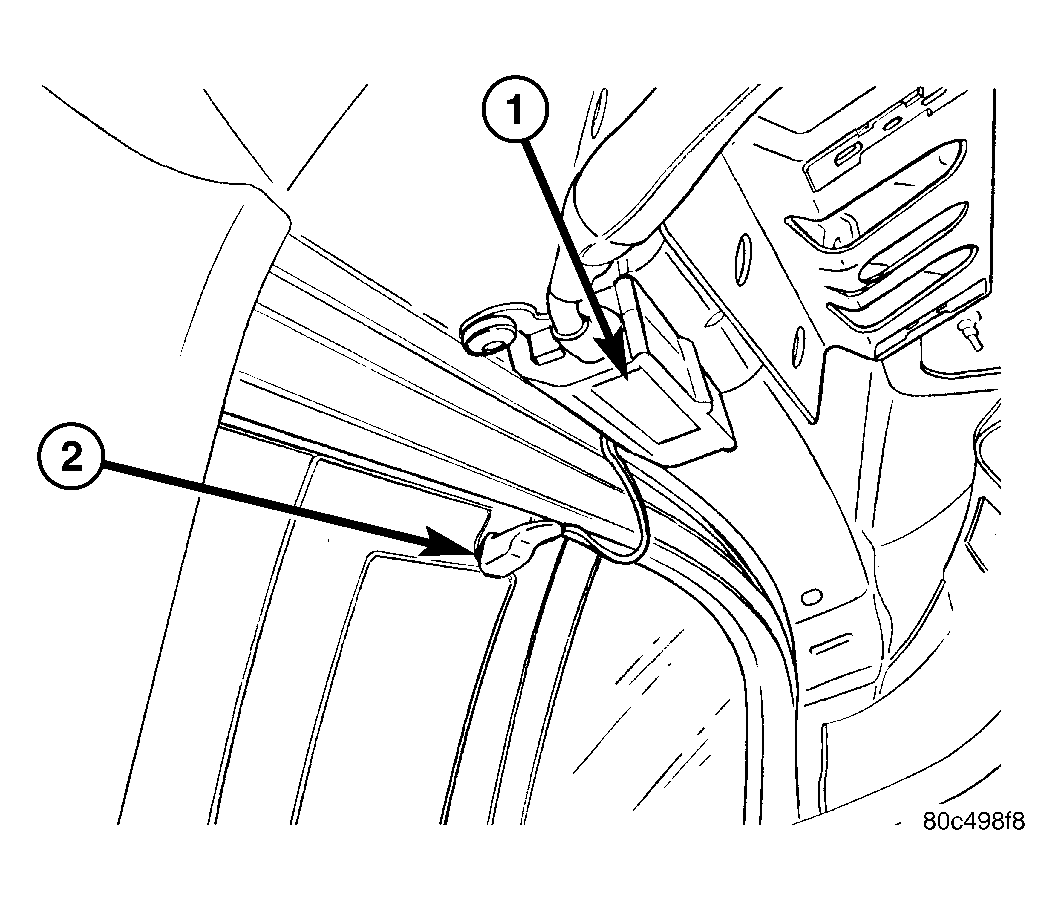

Fig 1: ANTENNA MODULE
Courtesy of DAIMLERCHRYSLER CORP.

1 - ANTENNA MODULE

2 - ANTENNA MODULE CONNECTOR
Disconnect antenna coax cable lead and electrical harness connector from antenna module.
Disconnect the antenna module connector from the quarter glass.
Remove the mounting screw and the antenna module.
