Powertrain Control Module C4- Black 38 Way

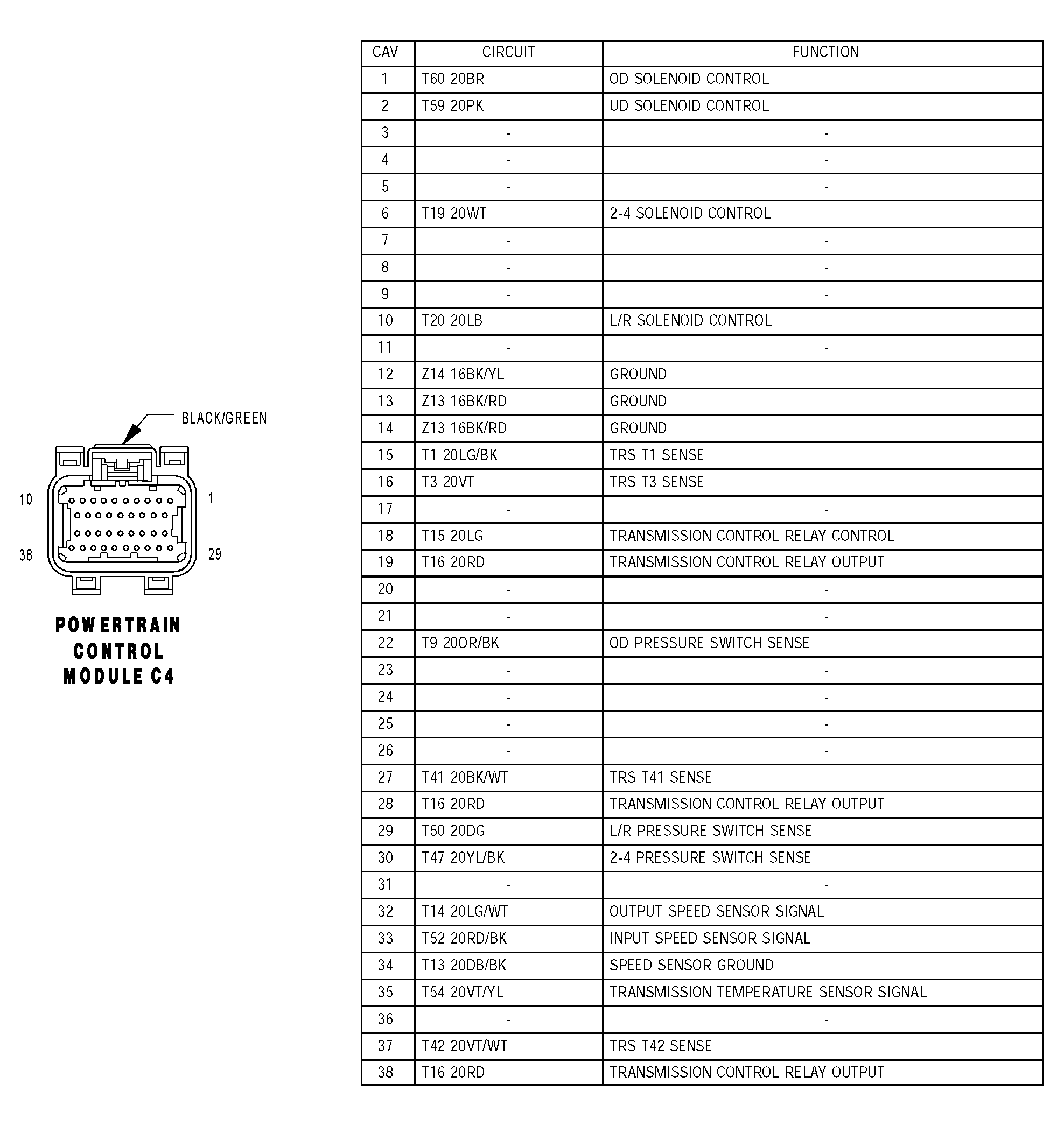

Fig 1: Powertrain Control Module C4 - Connector Pinout

G04536341

Courtesy of DAIMLERCHRYSLER CORP.
