Powertrain Control Module C2- Black 38 Way

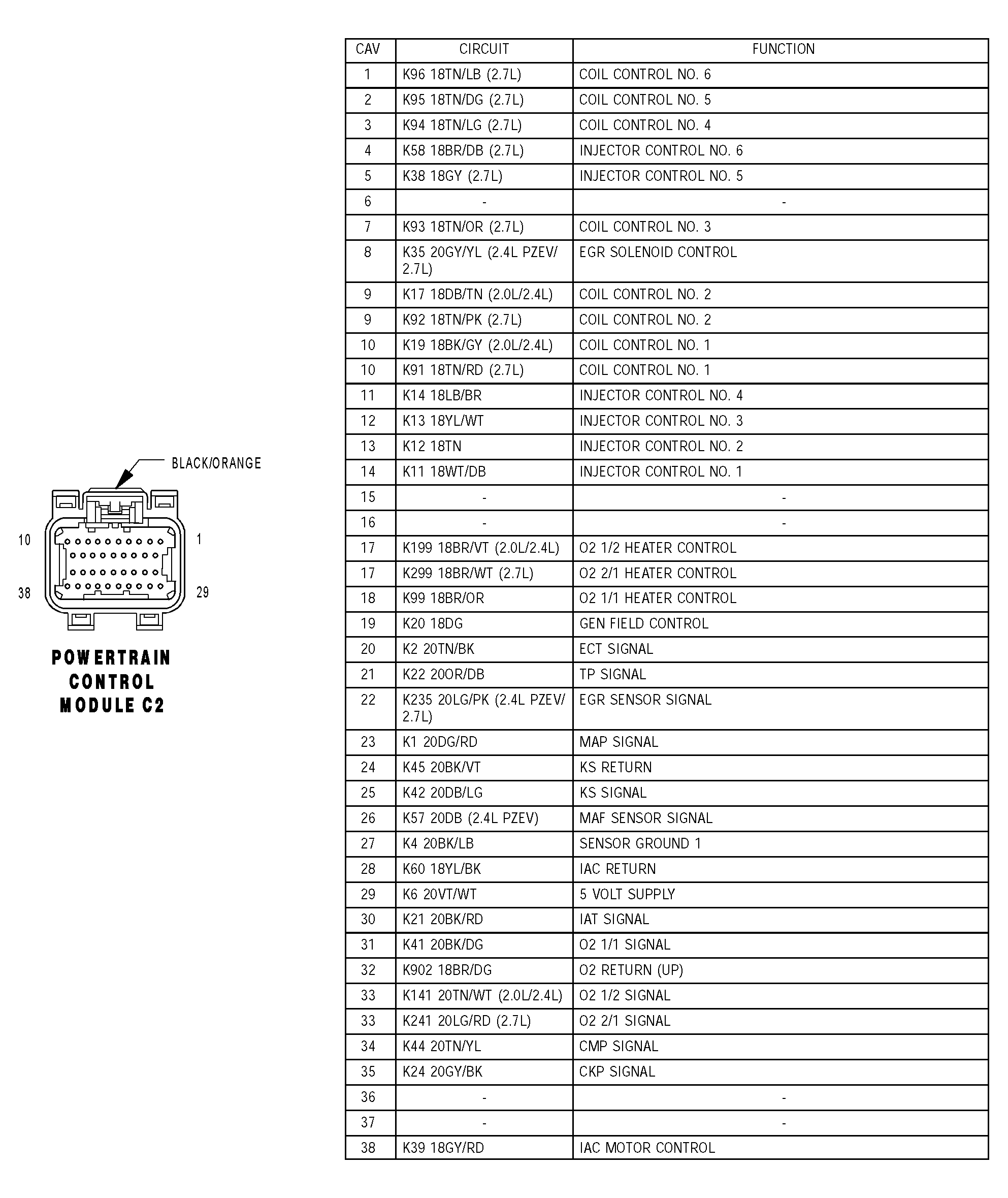

Fig 1: Powertrain Control Module C2 - Connector Pinout

G04536339

Courtesy of DAIMLERCHRYSLER CORP.
